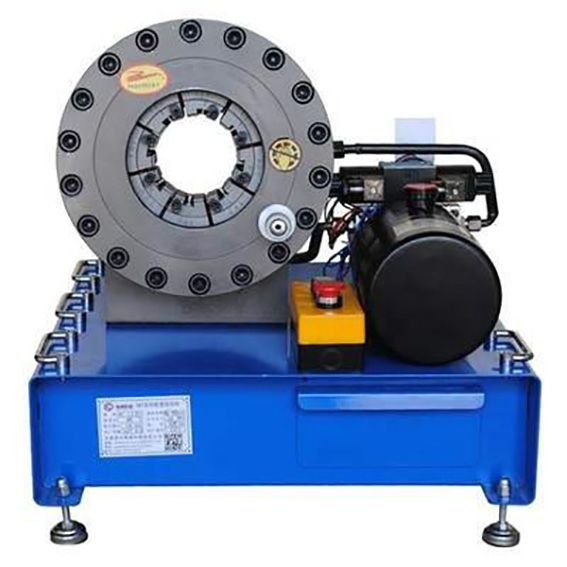

HYDRAULIC HOSE CRIMPER: RANGE 6-51MM 12V 507

Excl. GST: $4,680.00
Incl. GST: $5,382.00

* Hydraulic crimping machine is designed for crimping hydraulic hose onto fittings
*Has a range from 6.0mm to 51.0mm
* Convenient 12 volt model for onsite work
* This model is a bench mount model and comes with a set of 10 dies
* Very portable and easy to use
Battery is not included

Weight	400 kg
Dimensions	0.61 × 0.6 × 0.6 cm

In stock

Add to compare

Add to wishlist

SKU: HTA570312 Category: HYD HOSE CRIMPING MACHINE

Description
Shipping & Delivery

Description

DESCRIPTION	Hydraulic Hose Crimper
MODEL	KD-507
SWAGING FORCE	300 Ton
MAX HOSE SIZE (Internal)	51.0mm
SWAGING RANGE (outside)	6.0 – 70.0mm
MAX OPENING	114mm
RATED PRESURE	20MPa
MOTOR RATING	1.6kw 12V
SCALE ACCURACY	0.01mm
NOISE LEVEL	75dB
PUMP OUTLET QUANTITY	4 Litres
DIE SETS SUPPLIED	10 Sets
RANGE	15,19,23,26,31,36,41,47,55,60.
WEIGHT NETT/GROSS	380/ 400kg
VOLUME	0.2196cm
PACKING L X W X H	1080 x 660 x 600mm
