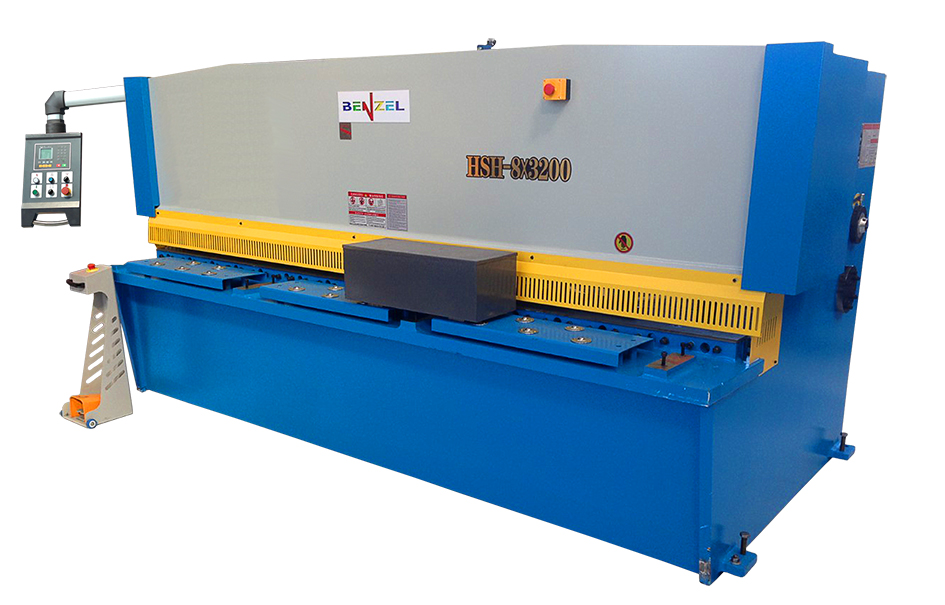

HYDRAULIC GUILLOTINE: BENZEL 8MM X 3200MM Swing Beam
$42,000.00
* All welded frame, highly ridgid, stress relieved
* Equipped with 900mm motorised back gauge with precision ballscrews for accurate positioning
* Control ststem is Estun E-21S
* Rear safeted guards with safety light curtian fitted *
| Weight | 6.972 kg |
|---|---|
| Dimensions | 4.5 × 2.5 × 2 cm |
Description
| MODEL | HSH 8MM X 3200 |
|---|---|
| CONTROLLER | Estun E-21S |
| SHEARING CAPACITY | 8.0mm Mild Steel |
| BLADE LENGTH | 3200mm |
| RAKE ANGLE | 1.5 deg |
| MAX RAKE ANGLE | N/A |
| MIN RAKE ANGLE | N/A |
| NO OF HOLDDOWN | 12 Spring Clamps |
| HOLDING FORCE | 15 bar |
| BACK GAUGE LENGTH | 900 mm Motorised |
| MOTOR | 7.5 Kw |
| LIGHT GUARD | Yes |
| LENGTH | 3840 mm |
| WIDTH | 2320 mm |
| HEIGHT O/A | 1620 mm |
| WEIGHT NETT/GROSS | 6,972kg |
| VOLUME | 22.500cm |
| PACKING SIZE L x W x H | 3800 x 2500 x 2200mm |
Shipping & Delivery
