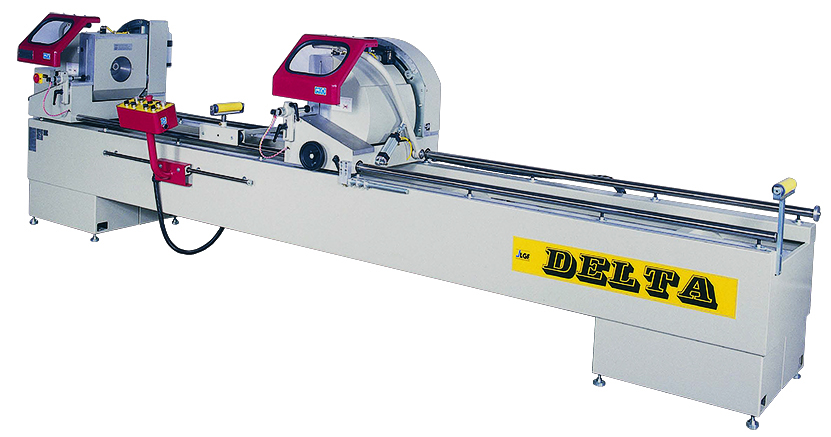

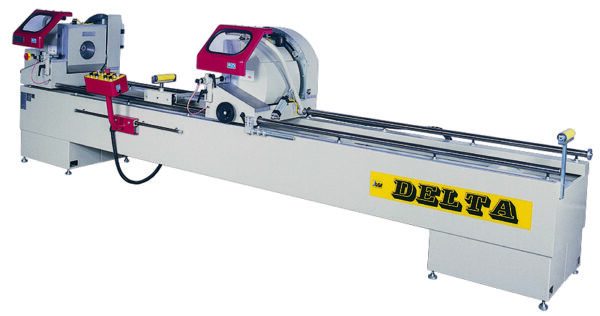

DOUBLE MITRE SAW: LGF DELTA
$33,000.00
* This LGF Delta double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Equipped with electronic positioner with up to 99 memory allocations.
* With monochrome screen and industrial integrated keyboard.
* Automatic electronic movement of the right head.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
| Weight | 750 kg |
|---|---|
| Dimensions | 3 × 1.6 × 1.6 cm |
Related products
TWIN HEAD SAW: MERRIT CHINA
SKU:
ALU100126
MITRE SAW; QCS-400 UP CUTTING
SKU:
ALU301040
MITRE SAW; LGF KRONOS 350MM
SKU:
ALU301050
* LGF machines are made in Italy to strict CE standards.
* Manual down stroking of the head by means of ergonomic safety lever.
* Blade protection cover with automatic closing by means of lever.
* Head rotation on its own axis at -45° / 45° with mechanical locking system.
* Manual locking system on working bench at any intermediate degree.
* Rotating working bench.
* Equiped with air clamping and mist spray.
* Comes complete on heavy duty stand.
MITRE SAW: LGF PENTA MITRE
SKU:
ALU301350
* High quality Italian machine.
* Rising blade with adjustable feeding.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°, and pneumatic brakes for intermediate degrees.
* Tilting blade can cut at any angle between 80° and -80°.
* Digital display shows the intermediate degree cuts.
* Complete with trimming fence for performing trim cuts.
* Full safety guarding around the work table.
* Horizontal pneumatic clamping system with rubber pads.
* Can be fitted with blades from Ø 500mm - Ø 530m.
* Spray mist lubrication.
DOUBLE MITRE SAW: LGF ZETA
SKU:
ALU302000
* This LGF ZETA double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Central controls make the pneumatic cutting action simple and hands free.
* Equipped with auto lubrication for smooth cutting and clean finish.
* Comes with central workpiece support.
TWIN HEAD SAW:GAMMA SWING DIG
SKU:
ALU302200
* Equipped with electronic positioner.
* With 10” colour screen and touchscreen system.
* Radial sliding of the saw carriage.
* Pneumatic tilting heads from 90° to 45°.
* USB port to save/upload cutting lists and programmes.
* Available in 4mt or 5mt bed length.
* Can be fitted with a 500mm, 530mm or 550mm blade.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
AUTO CUT OFF SAW: XERON
SKU:
ALU303200
* The LGF XERON is a automatic cut off saw with bar feeder.
* Pendulum movement of the sawing group.
* Pneumatic external adjustment of the saw blade feeding.
* Bar feeding by means of paneumatic cylinder.
* Manual setting of cutting length by means of hand wheel from 0 to 660mm complete with metric scale and magnifying glass.
* Fully automatic cutting procedure.
* Full protection safety covers with manual closing.
MITRE SAW; SHCS500 UP CUTTING
SKU:
ALU305000
