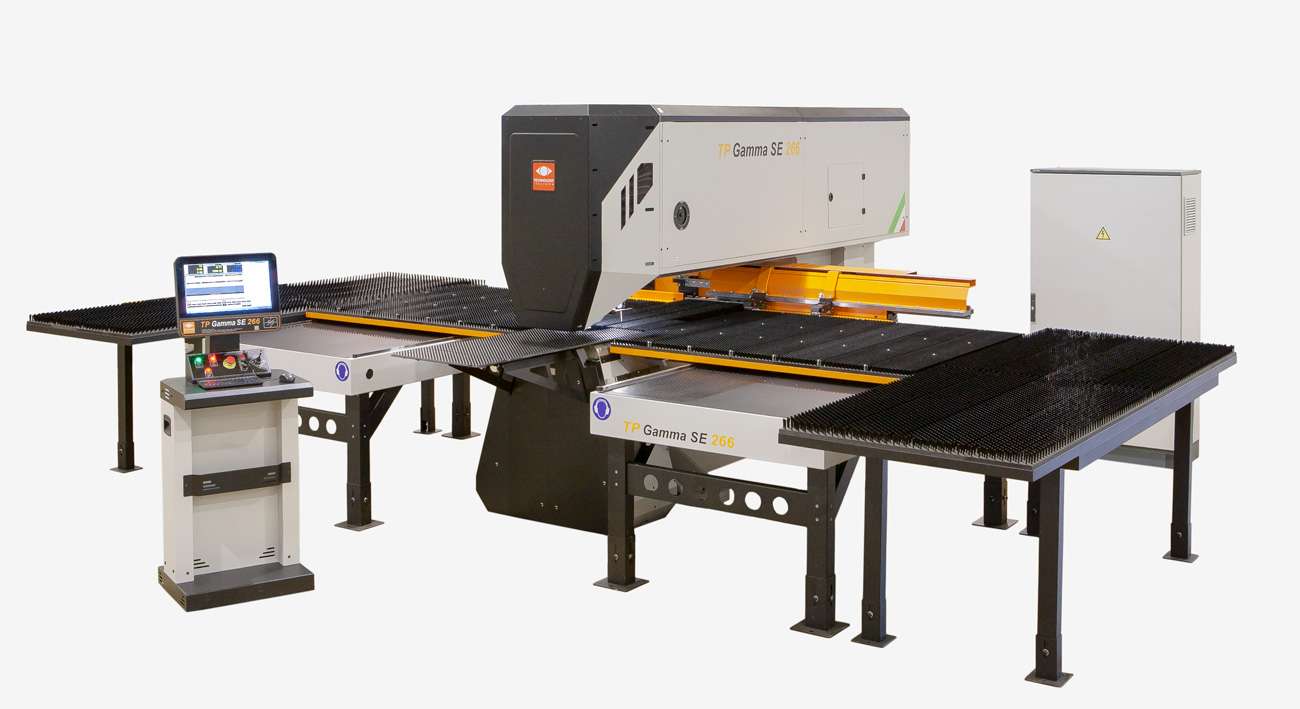

CNC TURRET PUNCH : START LINE TECNO PUNCH GAMMA

It is suitable for own productions and third-party account, providing an excellent
performance/investment ratio.
The groundbreaking vertical turret, unique feature of TECHNOLOGY, is equipped with
15 rotating stations that allow considerable savings on machine setup times and tools
purchase costs
The advanced integrated auto-index system allows any tool to be oriented from 0° to 360°, with an accuracy
of 0.01°. Thus the number of tools to be purchased is drastically reduced.
In addition, with CAD/CAM software you can automatically perform complex nesting by reducing programming and production time
The open “C” frame provides the highest possible accessibility.
Unlike closed structures, the “C” shaped frame is the only solution to process sheets that are
larger than the machine working area and is ideal for loading sheets on multiple sides without
obstacles.
For the first time on a punching machine, high-frequency operations can be carried out without
motor overheating, thanks to the innovative DualCAM technology. TECHNOLOGY has thus introduced a new CONTINUOUS ROTATION mode of the engine, in addition to the traditional
PENDULUM mode, which is common to all punching machines
Latest servo drive technolgy with FANUC motor and FANUC Controller.
Compatibility with Trumpf tools
