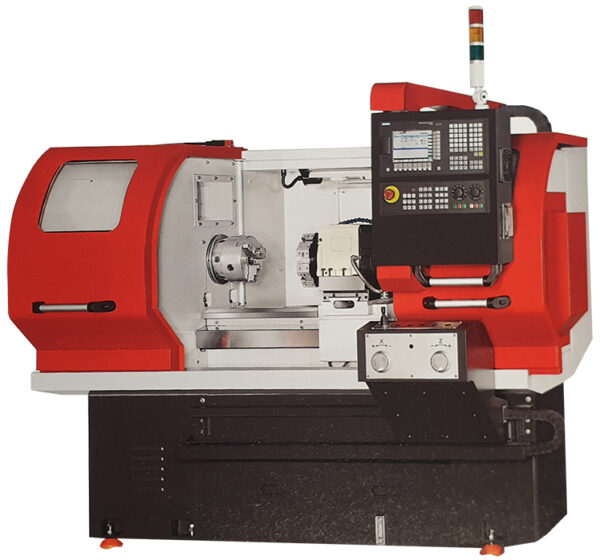

CNC LATHE: RICHYOUNG RIC-TC1740 TEACH
$0.00
| Weight | 1600 kg |
|---|---|
| Dimensions | 2.32 × 1.68 × 2.03 cm |
Description
| SWING OVER BED | 440mm |
|---|---|
| SWING OVER XSLIDE | 240mm |
| DISTANCE BETWEEN CENTRES | 900mm |
| SPEEDS | 50-2500Rmm |
| SPINDLE BORE | 55.0mm |
| SPINDLE NOSE | D1-6 |
| BAR CAPACITY | 50.0mm |
| Z TRAVEL | 810mm |
| X TRAVEL | 220mm |
| TOOL POST | 8 Position Turret – 20 X 20MM |
| SPINDLE MOTOR | 6.3kw |
| TAILSTOCKTAPER | MT4 |
| CONTROLLER | FAGOR, SEIMEMS 808D,828D |
| WEIGHT NETT/GROSS | 1500/1600KG |
| VOLUME | 7.9121 |
| FLOOR SPACE | l2320 X W1680 X H2030mm |
