SWING OVER BED | 510MM |
---|---|
SWING OVER XSLIDE | 340MM |
DISTANCE BETWEEN CENTRES | 1500MM |
SPEEDS | 20-1800RPM |
SPINDLE BORE | 80MM |
SPINDLE NOSE | D1-8 |
BAR CAPACITY | 78MM |
ZTRAVEL | 1900MM |
XTRAVEL | – |
TOOL POST | 8 Station Turret |
SPINDLE MOTOR | 7.5Kw |
TAILSTOCKTAPER | MT5 |
CONTROLLER | Fagor 8055Tc |
WEIGHT NETT/GROSS | 2800.00/3400 |
VOLUME | |
FLOOR SPACE |
Availability : Enquire Now
Price per Unit
ex-gst
$98,560.00Inc-gst

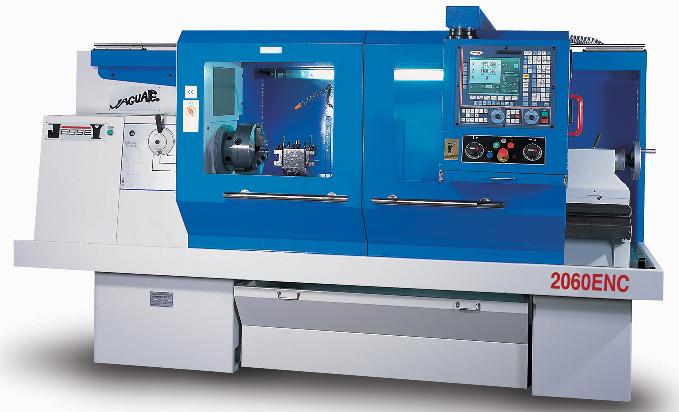

$113,344.00CNC LATHE: JAGUAR 2060ENC
Description
SKU : LCN301070
Price per Unit
$98,560.00 (Exc GST)
$113,344.00 (Inc GST)
FEATURES:
* This 2060ENC teach lathe is of rigid construction with hardened & ground beds over HRC 50 * The main spindle is supported by selected and preloaded super precision bearings to ensure high accuracy through full speed range * The main spindle shafts & gears are made from high grade alloy steel which are hardened and precision ground * Automatic lubrication pump provides all slide-ways and two axes ballscrews continuous lubrication at all times * The Fagor 8055TC is user friendly and comes complete with digital SERCOS AC servo system * Features 11 colour monitor * Comes with 8 station turret.
Weight | 3400 kg |
---|
Specifications
Description
Reviews (0)
Be the first to review “CNC LATHE: JAGUAR 2060ENC” Cancel reply
Shipping & Delivery
