COMBINATION SPANNER: 1"
Excl. GST: $17.47
Incl. GST: $20.09
Incl. GST: $20.09
CNC LATHE: RICHYOUNG RIC-TC33200 TEACH
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00

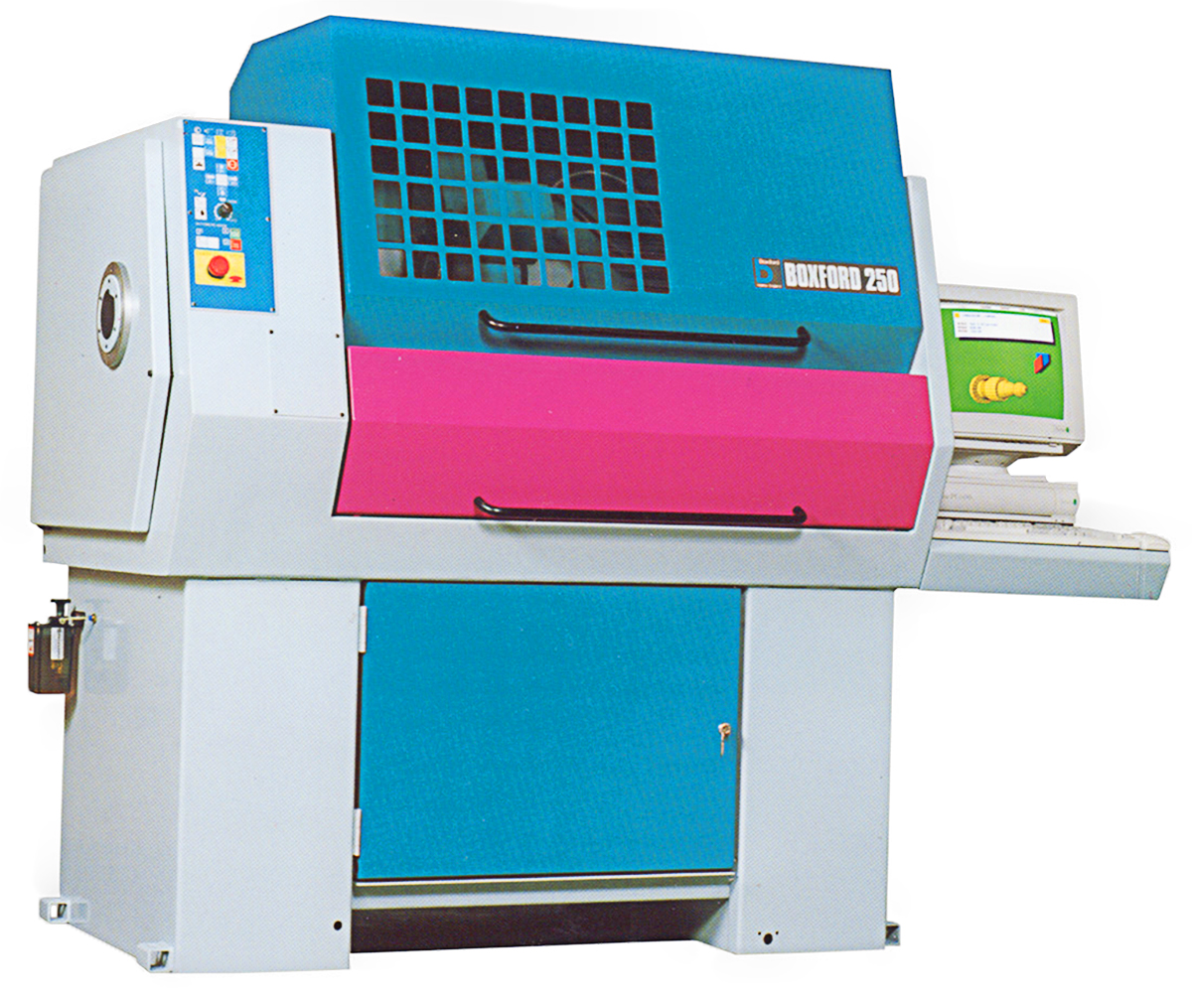

CNC LATHE: BOXFORD 250PC
Excl. GST: $0.00
Incl. GST: $0.00
* Automatic CAM software * Operates from variety of computers * Cuts steel brass aluminium & plastic * 3D graphics * Slant bed construction * Operated by personal computer the 250PC Training Computer Lathe is ideally suited for all training requirements * CAM User friendly Software with 3D grphical simulation & automatic error checking * Constant surface speed * Single phase electricity power supply gives easy installation * 2 Feed modes (per rev / per min) * Links with 300VMC machining centre and robots in an FMS system *
| Weight | 560 kg |
|---|
Description
| SWING OVER BED | 250mm |
|---|---|
| SWING OVER XSLIDE | |
| DISTANCE BETWEEN CENTRES | 350mm |
| SPEEDS | 200 – 3200rpm Variable |
| SPINDLE BORE | 35.0mm |
| SPINDLE NOSE | D-1 |
| BAR CAPACITY | 35.0mm |
| ZTRAVEL | 265mm |
| XTRAVEL | 200mm |
| TOOL POST | 8 Station |
| SPINDLE MOTOR | 1.5kw |
| TAILSTOCKTAPER | |
| CONTROLLER | Computer CoNTrolled |
| WEIGHT NETT/GROSS | 560 Kg |
| VOLUME | |
| FLOOR SPACE | 1965 x 890mm |
Shipping & Delivery
Related products
GLOBAL 3000: TEMPERATURE SENSOR
SKU:
LAS200906
GLOBAL 3000: PRINTING NOZZLE
SKU:
LAS200908
GLOBAL 3000: VENTURI
SKU:
LAS200909
CNC LATHE/MILL: BOXFORD DUET
SKU:
LCN300120
* The Boxford 'Duet' dual purpose CNC training Lathe/Mill is an ideal machine which has been specially designed for educational purposes * Comes with Boxford CAD/CAM software using world standard M&G codes * Drawings from other CAD applications can be imported and processed * Standard IBM compatible PC computer is required to handle the user-friendly software * Horizontal it can be used as a lathe - when stood on end it becomes a milling machine *
BOXFORD: A3RTCM2EX CNC Router
SKU:
MMC400050
CNC ROUTER: MG1630D ATC
SKU:
MMC400056
BOXFORD: 300VMC TABLE 505 X 135MM.
SKU:
MMC400130
* The Boxford software is an integrated suite of powerful CAD/CAM tools
* The CAD provides a variety of drawing tools including text fonts with excellent manipulation routines
* Drawing from other CAD applications can also be imported and processed
* Manual Data Input allows programs to be entered using International Industrial programming conventions
* Touch sensitive control panel incorporating illuminated push buttons allows the machine to be operated without a computer
* Active and accurate tool path graphics continuously displayed line by line during program write test run and manufacture
GL550 ACCESSORY-COOLANT SYSTEM
SKU:
MMC400262
