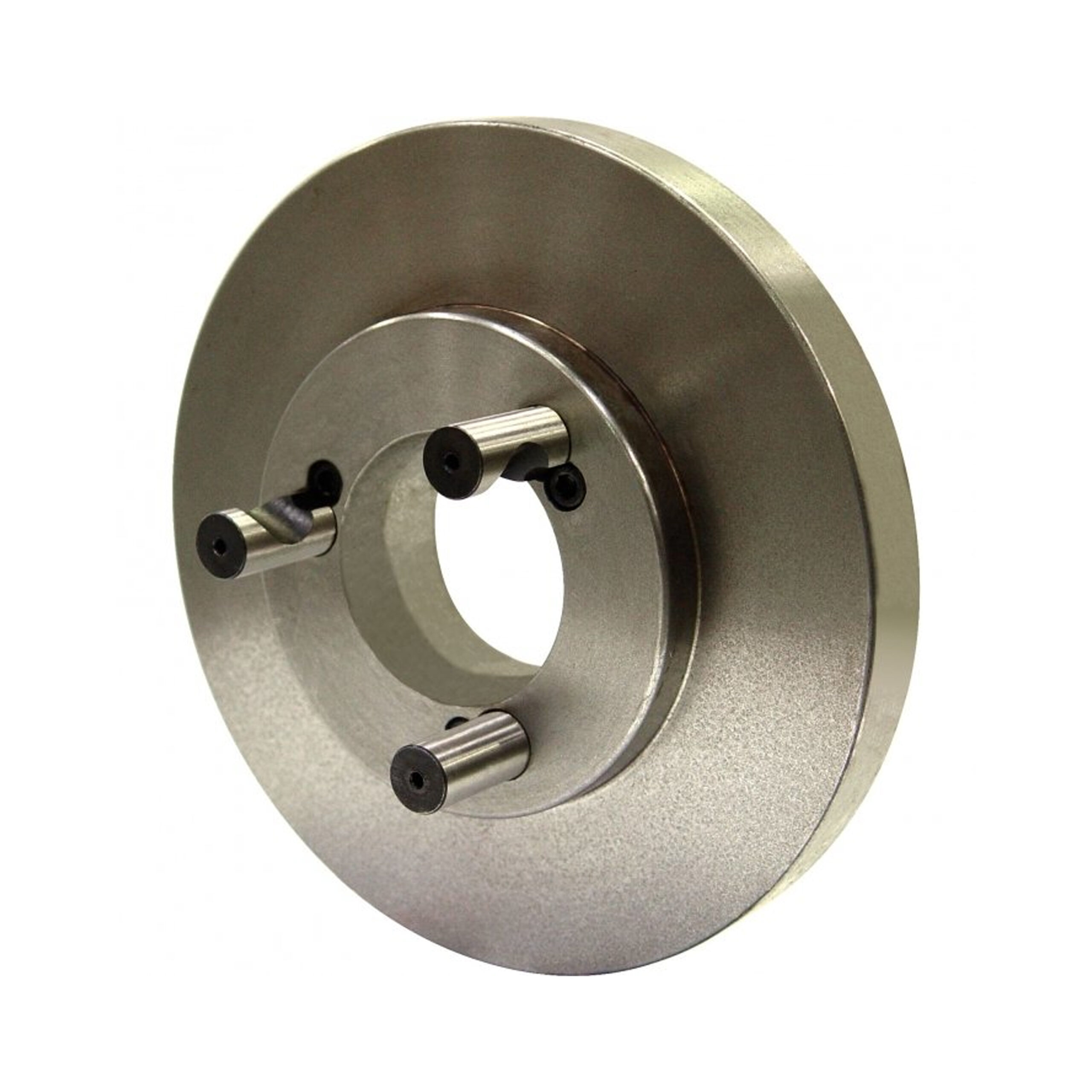

CAMLOCK B/PLATE: 160MM D1-4 - Image 1
Click to enlarge

CAMLOCK B/PLATE: 160MM D1-4

Excl. GST: $175.00
Incl. GST: $201.25

* This backing plate is to suit D1-4 spindles
* Should be machined when mounted on the lathe to suit the required chuck

Weight 4.36 kg
Dimensions 0.18 × 0.18 × 0.04 cm

In stock

Add to compare
Add to wishlist
SKU: LCB147400 Category:
Description
DESCRIPTION Backing Plate
DIAMETER 160mm
MOUNT TYPE D1-4 ( Pin Dia 15.88mm = 5/8″)
NO OF PINS 3 Camlock
CAMLOCK PIN DIAMETER 15.88mm = 5/8″
BORE 62mm
WEIGHT NETT/GROSS 4.34kg/ 4.36
VOLUME 0.004cm
