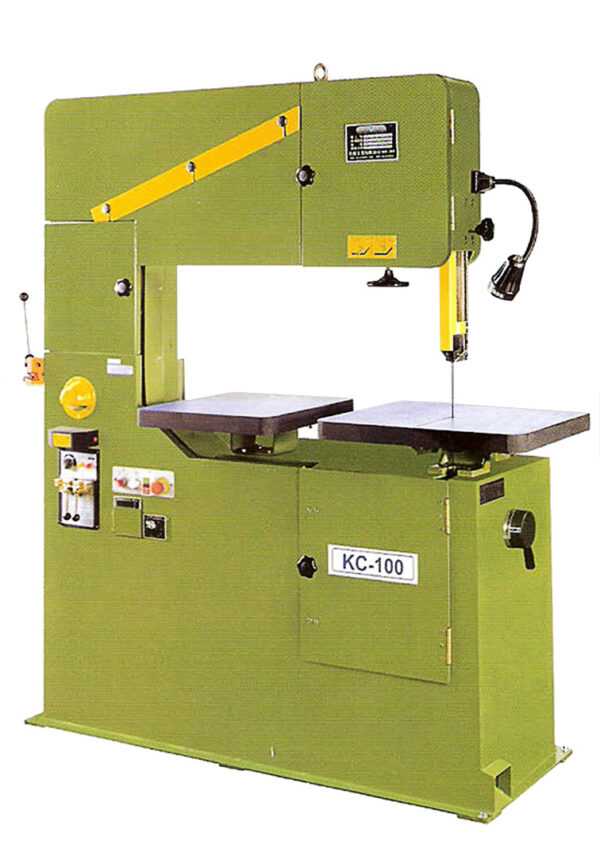

BANDSAW: KC-100 METAL 1PH VERTICAL INVERTER V/SPEED
Excl. GST: $9,795.00
Incl. GST: $11,264.25
Incl. GST: $11,264.25
BUTT WELDER: TJ-20 BLADE WELDER (TAIWAN)
Excl. GST: $1,323.84
Incl. GST: $1,522.42
Incl. GST: $1,522.42
BANDSAW: KV-100A METAL 1PH VERTICAL AUTO TABLE FEED
Excl. GST: $21,215.00
Incl. GST: $24,397.25
* Manufactured in Taiwan
* Large throat capacity (610mm)
* Comes with blade butt welder and grinder
* Emergency stop button
* Low voltage work lamp
* Complete with rip fence
* Table tilt to 15 degrees
* CE certificate
* With auto feed table
| Weight | 680 kg |
|---|---|
| Dimensions | 1.77 × 0.76 × 2.14 cm |
Description
| DESCRIPTION | Verticle Metal Cutting Bandsaw |
|---|---|
| TYPE | Verticle |
| MODEL | KV-100A |
| TABLE SIZE | 600 x 500mm |
| MAX CUTTING WIDTH | 1010MM |
| MAX CUTTING HEIGHT | 340mm |
| BLADE SPEED (LOW) | 10 – 82m/min |
| BLADE SPEED (HIGH) | 230 – 1050m/min |
| BLADE SIZE | 4540 X 16.0mm |
| BUTT WELDER | 2.4kva |
| BUTT WELDER CAPACITY | 3.0 – 16.0mm |
| MAIN MOTOR | 2 hp 230v 1 Phase |
| TABLE FEED MOTOR | Nil |
| WEIGHT NETT/GROSS | 580/680kg |
| VOLUME | 2.8787cm |
| PACKING Y x W x H | 1770 x 760 x 2140mm |
Shipping & Delivery
Related products
BANDSAW: TJ-400 METAL VERTICLE (TAIWAN)
SKU:
BSM993980
BANDSAW: TJ-500 METAL 1PH VERTICAL(TAIWAN)
SKU:
BSM994020
BANDSAW: TJ-500D METAL 1PH VERTICAL (TAIWAN)
SKU:
BSM994024
* This 500D metal cutting verticle bandsaw has a 500mm throat
* Table tilt 15 deg both left and right
* Auto-sliding table
* Comes with buit-in blade welder and grinder
* Variable operation so you can choose the correct speed for the type of metal
* Fitted with rubber bonded saw wheels for positive blade tracking
* Comes with blade cleaning brush
BANDSAW: TJ-600D METAL 1PH VERTICAL (TAIWAN)
SKU:
BSM994026
* This 500D metal cutting verticle bandsaw has a 500mm throat
* Table tilt 15 deg both left and right
* Auto-sliding table
* Comes with buit-in blade welder and grinder
* Variable operation so you can choose the correct speed for the type of metal
* Fitted with rubber bonded saw wheels for positive blade tracking
* Comes with blade cleaning brush
BANDSAW: TJ-700 METAL 1PH VERTICAL (TAIWAN)
SKU:
BSM994028
BANDSAW: KS-100 METAL 1PH VERTICAL
SKU:
BSM994080
BANDSAW: KC-100 METAL 1PH VERTICAL INVERTER V/SPEED
SKU:
BSM994084
BANDSAW TJ-450 WELDING TRANSFORMER #624
SKU:
BSM994202
* Robust machine that would complement any workshop
* Speed change is altered by handwheel situated at the on one side of the machine
* Heavy cast table and strong metal base to support your workpiece
* Table tilts 15ø both left and right
* Complete with welder which allows the customer to make his own blades on the spot
* Also equipped with a grinder to finished making the blade off
* A blade shear is also mounted on the machine for convenience for cutting the blades to set length
