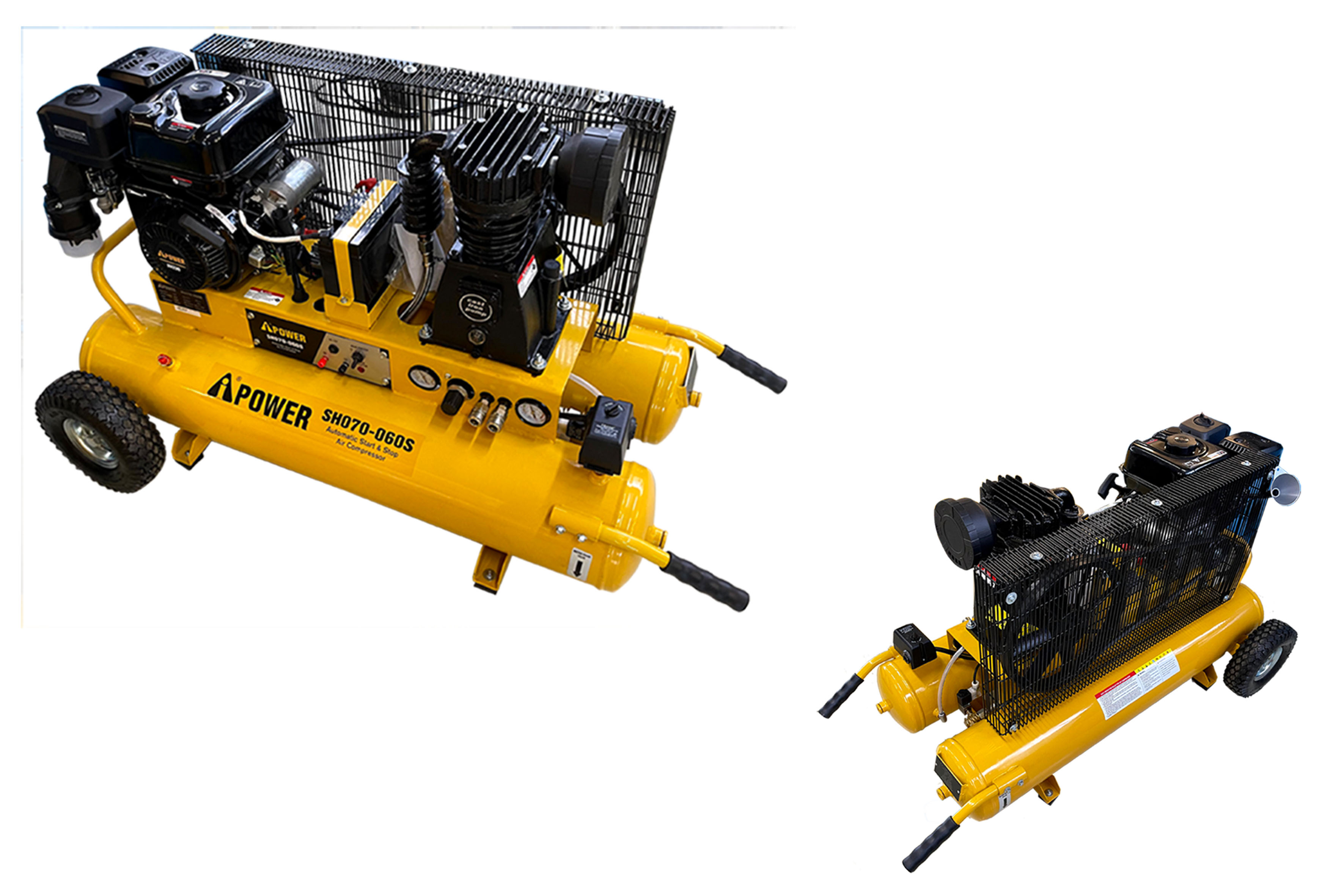

COMPRESSOR: I-POWER PETROL 60LTR 6.5HP 320L/MIN 8 BAR W/BATTERY
Excl. GST: $1,690.00
Incl. GST: $1,943.50
Incl. GST: $1,943.50
PME SISAL: 50 X 1S 12.0T 10MM
Excl. GST: $10.60
Incl. GST: $12.19
Incl. GST: $12.19
BANDSAW: CY-350RN 270MM 3PH ROUND TABLE
Excl. GST: $0.00
Incl. GST: $0.00
* European style bandsaw.
* Round table.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
| Weight | 495 kg |
|---|---|
| Dimensions | 1.93 × 0.97 × 1.12 cm |
Description
| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY350RN |
| Capacity Round 90° (mm) | 270 |
| Capacity Rectangular 90° (mm) | 260 x 320 |
| Capacity Round 45° (mm) | 230 |
| Capacity Rectangular 45° (mm) | 210 x 220 |
| Blade Speeds (no.) | 1 |
| Blade Speeds (m/min) | 36 / 72 |
| Blade Size L x H (mm) | 2,925 x 27 x 0.9 |
| Motor (kW) | 2.2 |
| Voltage (V) | 400 |
| Weight Nett / Gross (kg) | 445 / 495 |
| Volume (m³) | 2.0960 |
| PACKING SIZE |
