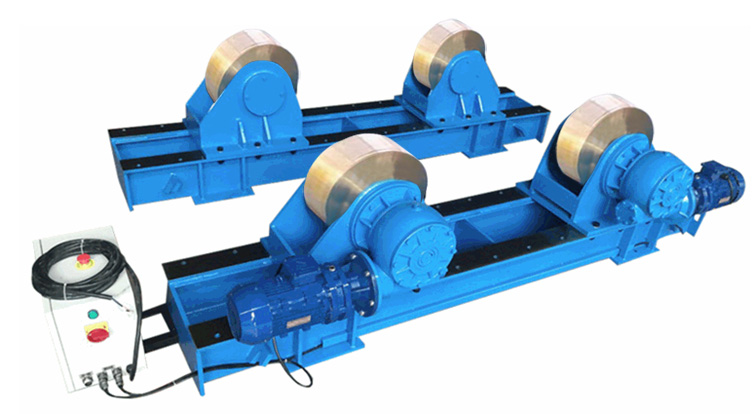

WELDING ROTATOR SET: 50 TON 400-4500MM POWERED + IDLER
$0.00
* This welding rotator seti includes 1 x powered roller ans 1 x non-powered roller, Wheels are PU coated
* Suitable for pipes from 300mm to 4500mm
* The main roller is powered by 2 x 0.55kw AC steeper motors though a comtrol box with didital display attached
* The whole design of the control function buttons on the hand control box,
Indirectly via potentiometer adjustment of the current welding speed
* Welding speed can be pre-adjusted in advance
* In the manual control box can be displayed by the digital display table when the frequency of the motor is running.
* The opperation fuctions are all on the hand remote
| Weight | 960 kg |
|---|---|
| Dimensions | 1.85 × 0.4 × 0.51 cm |
Description
| DESCRIPTION | Welding Rotator Set |
|---|---|
| MODEL NUMBER | KT-50 |
| PAYLOAD | 50 Ton |
| WORKPIECE DIA | 400 – 4500mm |
| PU WHEEL DIA X WIDTH | 425mm x 220mm |
| TYPE | Convention Type |
| ROLLER POWER | 1.5kw x 2 |
| ROLLER SPEED | Variable 6-60m/m |
| SET INCLUDES | 1 x Powered Roller 1 x Non-Powered Roller |
| WELDING SPEEDS | Variable 100-1000 m/min |
| WEIGHT | 960kg |
| VOLUME | 0.3774cm |
| PACKING SIZE L x W x H |
Shipping & Delivery
Related products
WELDING ROTATOR IDLER: 10 TON IDLER ONLY
SKU:
WER1000212
WELDING ROTATOR SET: 20 TON 300-3500MM POWERED + IDLER
SKU:
WER1000220
* This welding rotator seti includes 1 x powered roller ans 1 x non-powered roller, Wheels are PU coated
* Suitable for pipes from 300mm t0 3500mm
* The main roller is powered by 2 x 0.55kw AC steeper motors though a comtrol box with didital display attached
* The whole design of the control function buttons on the hand control box,
Indirectly via potentiometer adjustment of the current welding speed
* Welding speed can be pre-adjusted in advance
* In the manual control box can be displayed by the digital display table when the frequency of the motor is running.
* The opperation fuctions are all on the hand remote
WELDING ROTATOR SET: 30 TON 300-4000MM POWERED + IDLER
SKU:
WER1000230
* This welding rotator seti includes 1 x powered roller ans 1 x non-powered roller, Wheels are PU coated
* Suitable for pipes from 300mm t0 4000mm
* The main roller is powered by 2 x 0.55kw AC steeper motors though a comtrol box with didital display attached
* The whole design of the control function buttons on the hand control box,
Indirectly via potentiometer adjustment of the current welding speed
* Welding speed can be pre-adjusted in advance
* In the manual control box can be displayed by the digital display table when the frequency of the motor is running.
* The opperation fuctions are all on the hand remote

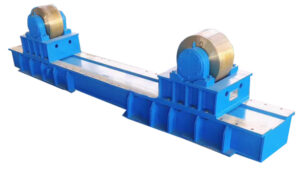

WELDING ROTATOR IDLER: 50 TON IDLER ONLY
