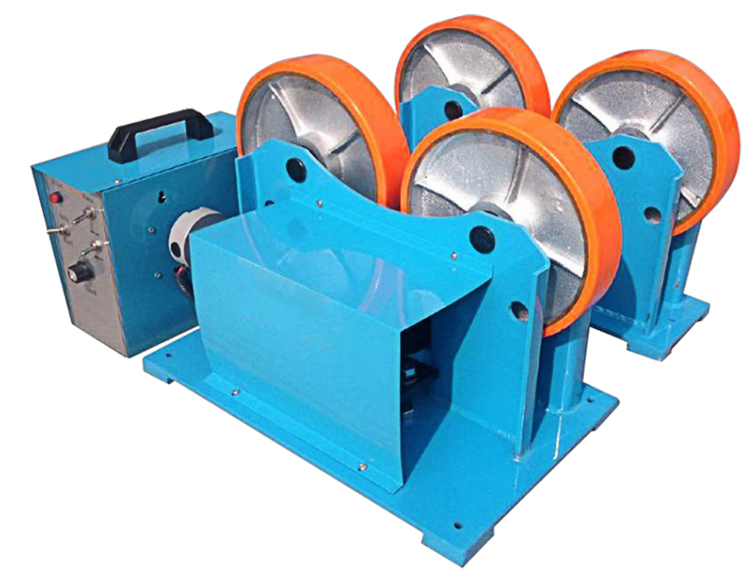

WELDING ROTATOR SET: 1 TON 25-800MM POWERED + IDLER
$2,360.00
* This welding rotator seti includes 1 x powered roller ans 1 x non-powered roller, Wheels are PU coated
* Suitable for pipes from 25mm t0 800mm
* The main roller is powered by 2 x 0.55kw AC steeper motors though a comtrol box with didital display attached
* The whole design of the control function buttons on the hand control box,
Indirectly via potentiometer adjustment of the current welding speed
* Welding speed can be pre-adjusted in advance
* This is a light duty model with 1 ton capacity.
| Weight | 85 kg |
|---|---|
| Dimensions | 1.85 × 0.4 × 0.51 cm |
In stock
Description
| DESCRIPTION | Welding Rotator Set |
|---|---|
| MODEL NUMBER | KTLl-1000 (Light Duty) |
| PAYLOAD | 1 Ton |
| WORKPIECE DIA | 25 – 800mm |
| PU WHEEL DIA X WIDTH | 250mm x 50mm |
| TYPE | Convention Type |
| ROLLER POWER | DC Motor 120w x 1 |
| ROLLER SPEED | Variable 150-1100rpm |
| SET INCLUDES | 1 x Powered Roller 1 x Non-Powered Roller |
| WELDING SPEEDS | Variable 100-1000 M/min |
| WEIGHT | 85kg |
| VOLUME | 0.3774cm |
