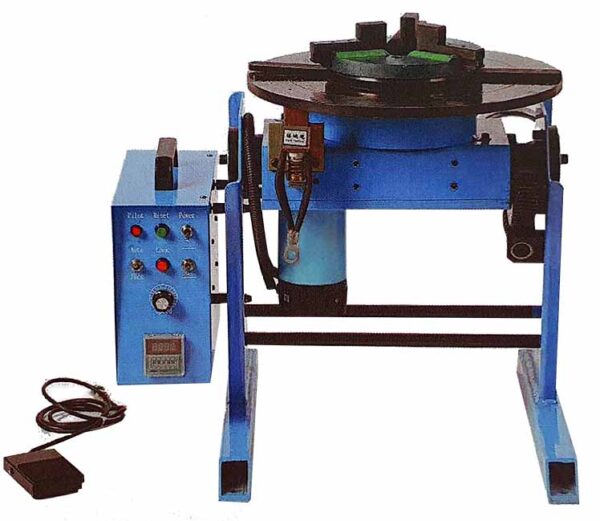

WELDING POSITIONER: 500MM TABLE V/SPEED
$4,600.00
– 240V Welding positioner
– Can be titled from 0-90 degrees
– Foot Pedal for convenient operation
– Compatible with the KD series chucks.
– Variable speed controller allows you to dial in the right speed.
– Responds quickly, starts and stops very smoothly
– Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
| Weight | 80 kg |
|---|---|
| Dimensions | 0.73 × 0.74 × 0.79 cm |
In stock
Description
| DESCRIPTION | Welding Positioner |
|---|---|
| MODEL NUMBER | BWJ-3 |
| TABLE DIAMETER | 500mm |
| HORIZONTAL CAPACITY | 300kg |
| VERTICLE CAPACITY | 150kg |
| ROTATIONAL SPEED | 0.05 – 0.5rpm |
| TILT ANGLE | 0 – 90deg (Manual) |
| HEIGHT OF TABLE | 600mm |
| TABLE HOLE SIZE | 90mm |
| MOTOR POWER | 220w 230V 1 Phase 50hz |
| CHUCK OPTIONS | KD-300/400 |
| WEIGHT NETT/GROSS | 80kg |
| VOLUME | 0.4268cm |
| PACKING SIZE L X W X H | 730 x 740 x 790mm |
