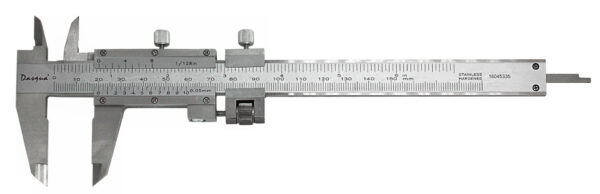

VERNIER CALIPER: DASQUA 150MM/6″ M/GRADE
$39.00
* This Dasqua vernier caliper is manufactured from quality stainless steel
* Hardened and precision ground with satin finish.
* Conforms to DIN862
* Machinest grade
| Weight | 0.35 kg |
|---|---|
| Dimensions | 0.2 × 0.12 × 0.05 cm |
In stock
Description
| Description | Vernier Caliper |
|---|---|
| Brand | Dasqua |
| Model | CAL-150M |
| Type | Machanist Grade |
| Metric Range (mm) | 0 – 150 |
| Imperial Range (inch) | 0 – 6 |
| Metric Reading (mm) | 0.02 |
| Imperial Reading (mm) | 1 / 128 |
| Material | Stainless Steel |
| Packing | Plastic Case |
| Weight (kg) | 0.282 |
| Volume (m³) | 0.0012 |
Shipping & Delivery
Related products
VERNIER CALIPER: DASQUA 100MM/4″
SKU:
CAL0101110
VERNIER CALIPER: 150MM/6″ DELETING THIS ITEM
SKU:
CAL0101115
VERNIER CALIPER: DASQUA 200MM/8″
SKU:
CAL0101120
VERNIER CALIPER: DASQUA 500MM/20″ H/DUTY L/100MM JAW
SKU:
CAL0101138
* DASQUA products are designed in Italy !
* This Dasqua vernier caliper is manufactured from quality stainless steel
* Hardened and precision ground with satin finish.
* Four way measuring for outside, inside, depth and step
* Tough shock-proof gearing
* Heavy duty beam for maximum rigidity
* Has fine adjustment screw
* This is the long jaw model (150mm)
* Conforms to DIN862
VERNIER CALIPER: DASQUA 500MM/20″ 100MM JAWS (SPECIAL)
SKU:
CAL0101150
* DASQUA products are designed in Italy !
* This Dasqua vernier caliper is manufactured from quality stainless steel
* Hardened and precision ground with satin finish.
* Four way measuring for outside, inside, depth and step
* Tough shock-proof gearing
* Heavy duty beam for maximum rigidity
* Has fine adjustment screw
* Long jaw model (100mm)
* Conforms to DIN862
VERNIER CALIPER: DASQUA 1000MM/40″
SKU:
CAL0101165
* DASQUA products are designed in Italy !
* This Dasqua vernier caliper is manufactured from quality stainless steel
* Hardened and precision ground with satin finish.
* Four way measuring for outside, inside, depth and step
* Tough shock-proof gearing
* Heavy duty beam for maximum rigidity
* Has fine adjustment screw
* Conforms to DIN862
VERNIER CALIPER: DASQUA 1500MM/60″ 0.02/0.001″
SKU:
CAL0101170
Q234 GEAR TOOTH VERNIER CALIPER
SKU:
CAL033234
* This vernier is a specalized design for measuring gear teeth.
* The caliper consists of two adjustable verniers
* These reference two dimensions on the gear and provide a measurement
* Vertical scale: Measures the depth of the teeth from the top of the pitch line.
* Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth
* One of the benefits using a caliper is that the gear does not have to be removed from the machine.
