TURRET VT-300: A station THICK TURRET 8.0MM ROUND

Ideal for large-scale production for companies seeking a high level of technology and performance. One of a kind in terms of accessibility and versatility. The reduced dimensions of the vertical turret in the working area allows the machining of corrugated sheets or sheets with thicknesses up to 4/6mm. It can be equipped with an automatic loading and unloading system for sheet metal, allowing a nonstop production. SERVO DRIVE PUNCHING UNIT: FANUC high-performance servo drive punching unit without any hydraulic oil, ensuring low energy consumption. It also includes DualCam technology for high frequency machining operations avoiding overheating of the motor VERTICAL TURRET: Groundbreaking 15-stations tool change system, unique on the market thanks to its vertical design. This feature, worldwide patented by TECHNOLOGY, allows to have the smallest possible encumbrance in the working area. It can be set up in few seconds thanks to the Speedy Setup system. “C” FRAME: It enables you to process sheets that are bigger than the machine's working range and to load them both frontally and sideways. The open "C" frame ensures the operator the highest accessibility and visibility of the working area. INTEGRATED AUTO-INDEX SYSTEM: It enables to rotate any tool from 0° to 360° DUAL MOTOR ON Y-AXIS: The TP Zeta is equipped with a dual motor for Y-axis movement that takes performances to the next level. TP Zeta can reach a punching frequency of 900 strokes/min Compatibility with Trumpf tools

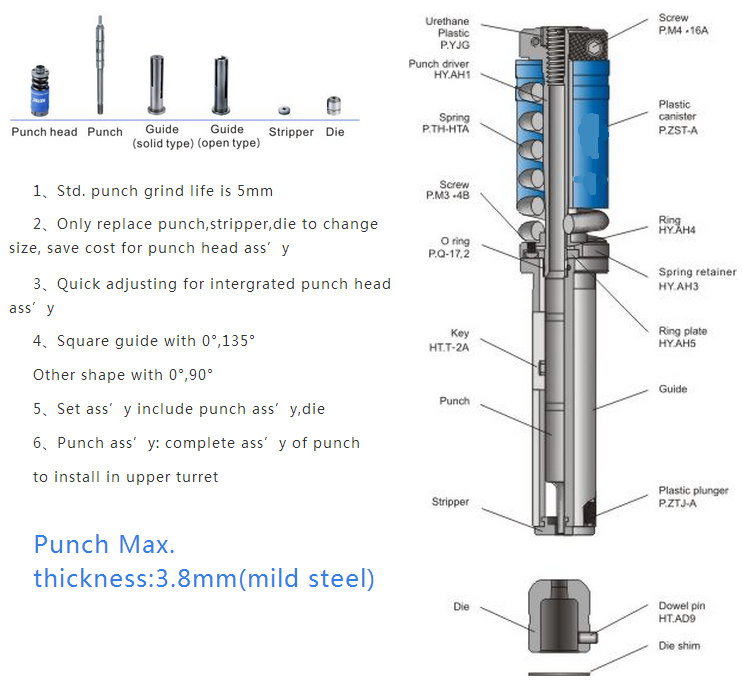

MODEL VT-300 DESCRIPTION “D” Station Thick Turret TO SUIT VT-300 SIZE 40 x 5mm Rect WEIGHT VOLUME
