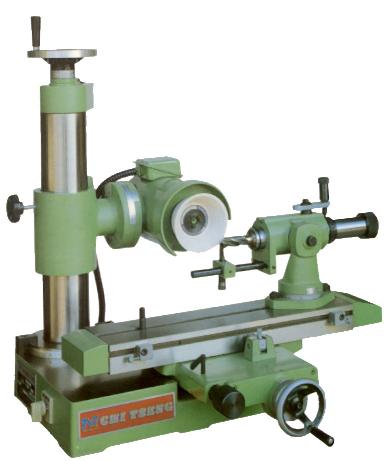

TOOL & CUTTER GRINDER: CT-205B

* This 10A tool and cutter grinder has a shank clamping range of 3-20mm * Comes with a set of U2 collets 6 8 10 12 16 20mm * Has a grinding taper range 0-180deg * Grinding negitive angle 0-52deg * Grinding relief range 0-44deg * Supplied with spare drive belt Wheel nut wrench stop rod * Ideal workshop machine for regrinding cutters end mills drills etc

MODEL CT-610 DISTANCE BTW CENTRES 250mm SWING OVER TABLE 208mm CROSS TRAVEL 160mm MAX WHEEL DIAMETER 150mm WHEEL SPEED 2850rpm

* This tool and cutter grinder has all the features required for sharpening end mills slot drills etc * Compact unit can be bench mounted or on cabinet * Air bearing movement for collet chuck to provide a positive control when sharpening tools * Motor comes in single phase

* This is the wheel flange for the GW-1 tool & cutter grinder *
