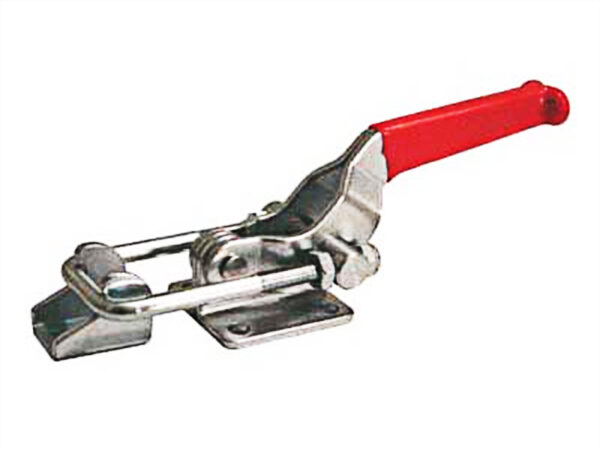

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-40371 S.S. |
| TYPE | Latch |
| ARM LENGTH | 79.4mm |
| CLAMPING FORCE | 1818Kg |
| MATERIAL | Stainless Steel |
| WEIGHT NETT/GROSS | 0.703/0.705kg |
| VOLUME | 0.0010cm |
| BASE MEASUREMENT | L60.0mm x W55.0mm |
| BASE HOLE MEASUREMENTS | L42.0mm Centres W38.0mm Centres |
| HARSP MOUNT |
Description
SKU : TC-200959
Price per Unit
$48.00 (Exc GST)
$55.20 (Inc GST)
FEATURES:
* Latch type toggle clamp
* Comes complete with harsp
* Quick release clamp
* Adjustable arms
* Manufactured from Stainless Steel
| Weight | 0.705 kg |
|---|---|
| Dimensions | 0.2 × 0.07 × 0.07 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

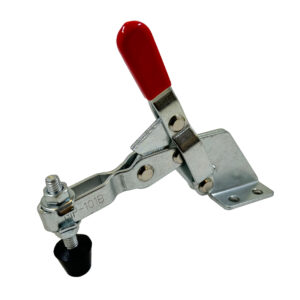

TOGGLE CLAMP: GH-102-B VERT
SKU:
TC-200040
TOGGLE CLAMP: GH-12265 VERT
SKU:
TC-200059

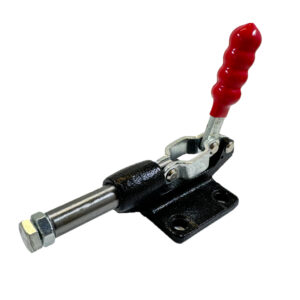

TOGGLE CLAMP: GH-303-E HORZ PUSH TYPE
