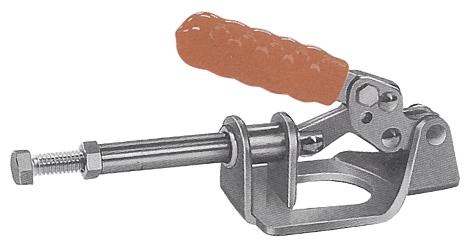

TOGGLE CLAMP: GH-302F HORZ PUSH TYPE

* This clamp is supplied with spindle assembly and red vinyl hand grip * Holding capacity 180kg * Handle is in a vertical position when clamped * Spindle is fitted with rubber holding pad

* The GH-304H clamp is suitable for light medium or heavy duty operations * Each clamp is supplied with a ductile iron base, precision machined for flatness * Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices * Plunger locks in extended or retracted position * These clamps are supplied with adjustable end screw for fine adjustment * The GH-304H clamp is supplied with red vinyl hand grip * Holding capacity is 680kg

* Adjustable spindle assemblies for toggle clamps

* The MP-36020 clamp is suitable for light medium or heavy duty operations * Each clamp is supplied with a pressed steel base * Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices * These clamps are supplied with adjustable end screw for fine adjustment * The MP-36020 clamp is supplied with red vinyl hand grip * Holding capacity is 220kg * Stroke is 25.0mm with handle locking in a 45deg position
