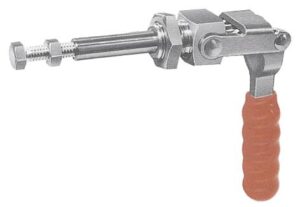

TOGGLE CLAMP: GH-301-A HORZ PUSH TYPE
$18.00
* The GH-301A clamp is suitable for light duty operations
* Each clamp is supplied with pressed steel base
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* Plunger locks in extended or retracted position
* These clamps are supplied with adjustable end screw for fine adjustment
* The GH-301A clamp is supplied with red vinyl hand grip
* Holding capacity is 45kg
* Stroke is 18.0mm with handle locking in horizontal position
* This is a small clamp o/a length is 65.0mm with three hole mounting base
| Weight | 0.48 kg |
|---|---|
| Dimensions | 0.1 × 0.04 × 0.04 cm |
In stock
Description
| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-301-A |
| TYPE | Push/Pull |
| LENGTH OF STROKE | 18.0mm |
| LENGTH O/A | 65.0mm |
| BASE MOUNTING | 3 Screw holes |
| CLAMPING FORCE | 45Kg |
| WEIGHT NETT/GROSS | 0.046/0.048kg |
| VOLUME | 0.0002cm |
| BASE MEASUREMENT | L33.0mm x W27.0mm |
| BASE HOLE MEASUREMENTS | L16.0mm Centres W17.0mm Centres |
| BASE TO RAM | 11.0mm |
