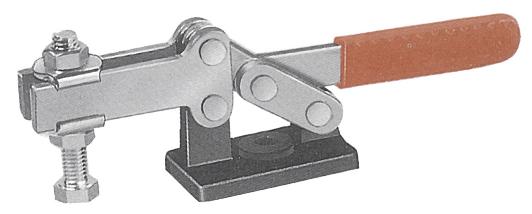

TOGGLE CLAMP: GH-203-FL HORZ
$28.00
* This clamp is supplied with spindle assembly and red vinyl hand grip * Holding capacity 227kg *
| Weight | 0.426 kg |
|---|---|
| Dimensions | 0.19 × 0.06 × 0.06 cm |
In stock
Description
| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-203-Fl |
| TYPE | Horizontal Handle When Lock |
| ARM LENGTH | 115mm |
| CLAMPING FORCE | 227Kg |
| WEIGHT NETT/GROSS | 0.424/0.426kg |
| VOLUME | 0.0007cm |
| BASE MEASUREMENT | L57.0mm x W47.0mm |
| BASE HOLE MEASUREMENTS | L41.0mm Centres W30.0mm Centres |
| BASE TO ARM | 31.0mm |
