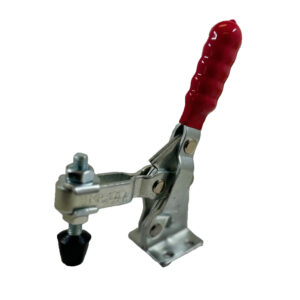

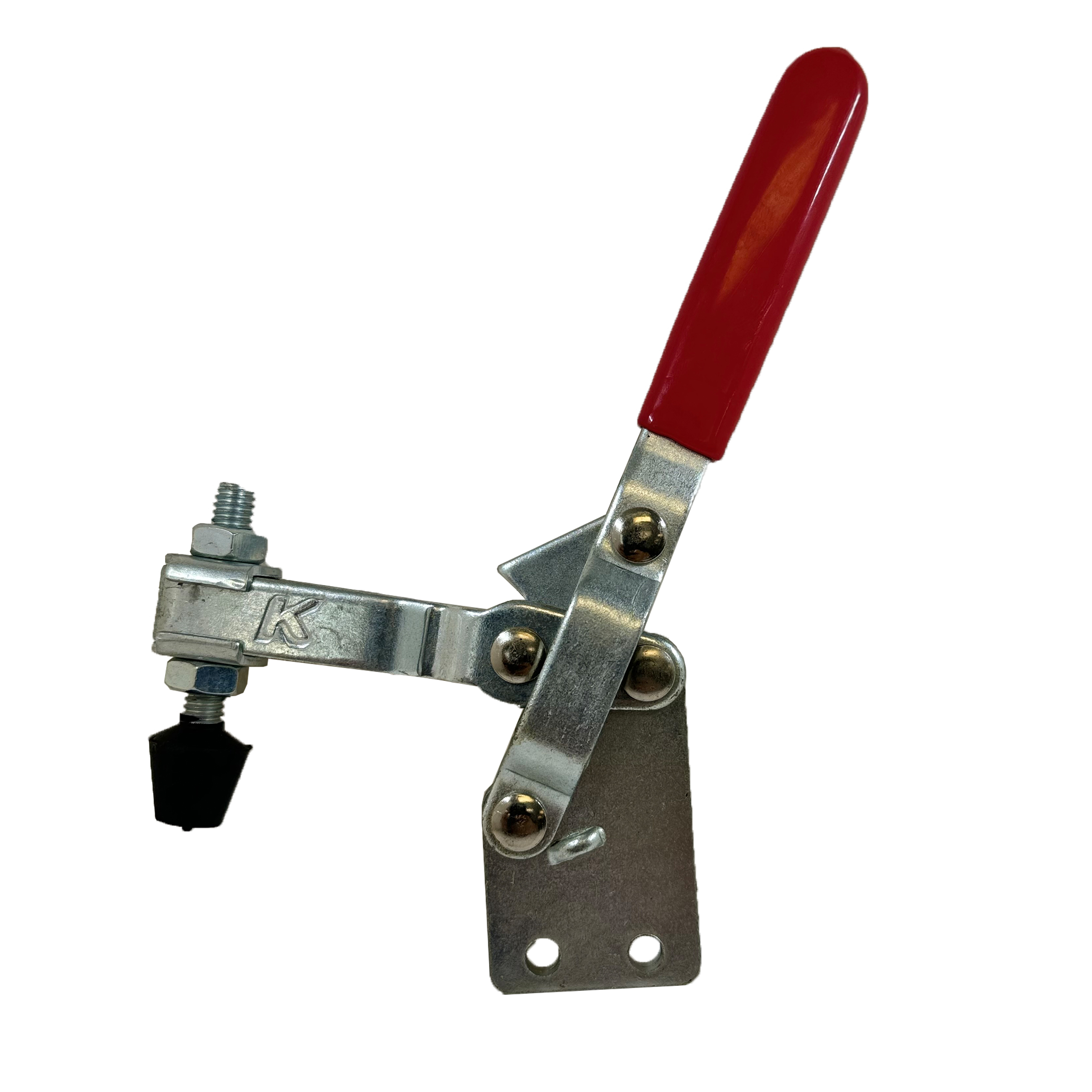

TOGGLE CLAMP: GH-101-D1 VERT

* This clamp is supplied with spindle assembly and red vinyl hand grip * Holding capacity 100kg * Handle is in a vertical position when clamped * Spindle is fitted with rubber holding pad

* The GH-304H clamp is suitable for light medium or heavy duty operations * Each clamp is supplied with a ductile iron base, precision machined for flatness * Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices * Plunger locks in extended or retracted position * These clamps are supplied with adjustable end screw for fine adjustment * The GH-304H clamp is supplied with red vinyl hand grip * Holding capacity is 680kg

* Adjustable spindle assemblies for toggle clamps * These spindles are are a M16 bolt with two nuts and two collars

* This clamp is designed for air assisted clamping * Square ram for precision and accurate movement * Aia acuator attaches to rear swivel pin
