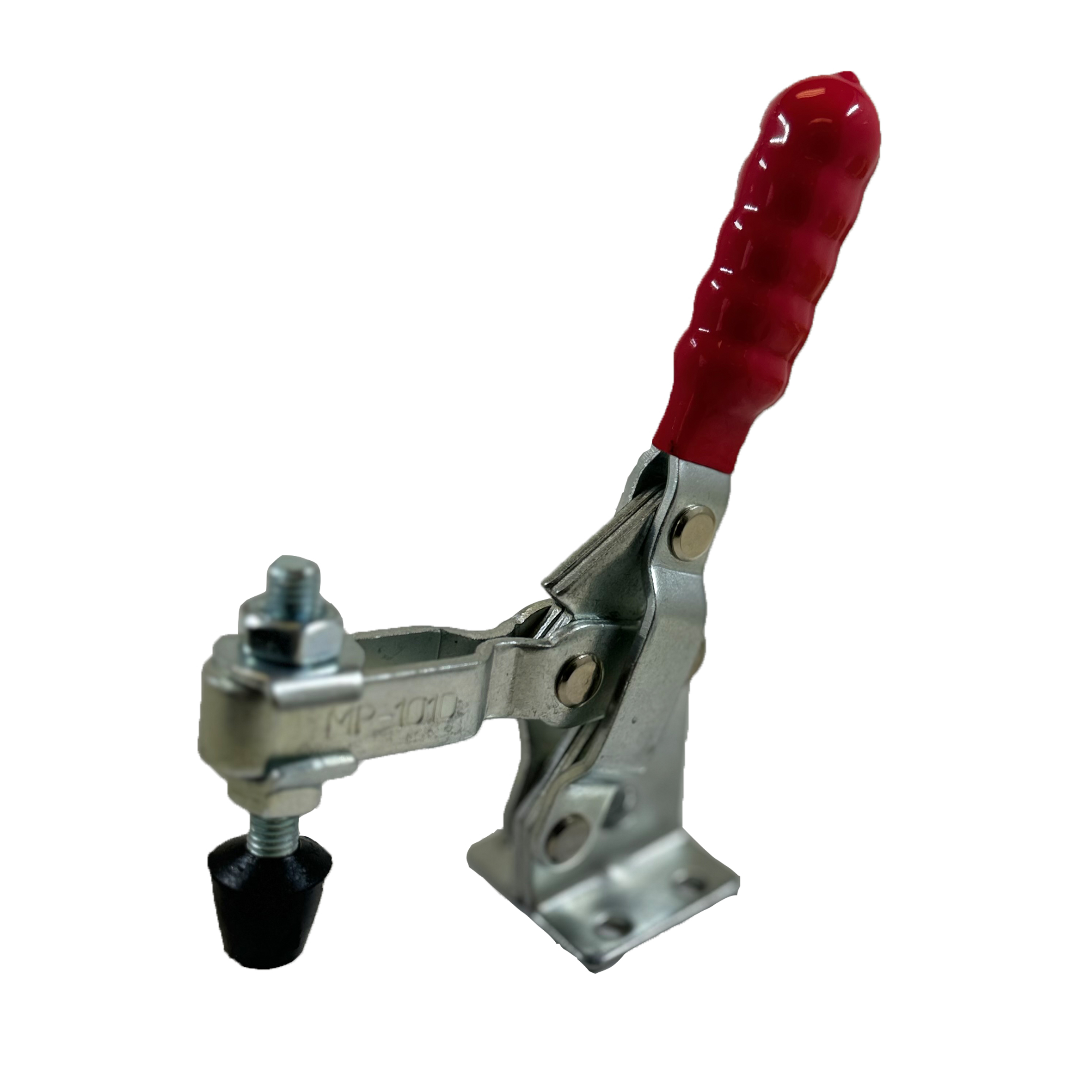

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-101-D |
| TYPE | Vertical Handle When Lock |
| ARM LENGTH | 50.0mm |
| CLAMPING FORCE | 180Kg |
| WEIGHT NETT/GROSS | 0.361/ 0.363kg |
| VOLUME | 0.0010cm |
| BASE MEASUREMENTS | L38.0mm x W41.0mm |
| BASE HOLE MEASUREMENTS | L19.0mm Centres W31.0mm Centres |
| BASE TO ARM | 40.0mm |
Description
SKU : TC-200060
Price per Unit
$33.87 (Exc GST)
$38.95 (Inc GST)
FEATURES:
* This clamp is supplied with spindle assembly and red vinyl hand grip
* Holding capacity 180kg
* Handle is in a vertical position when clamped
* Spindle is fitted with rubber holding pad
| Weight | 0.36 kg |
|---|---|
| Dimensions | 0.17 × 0.14 × 0.04 cm |
