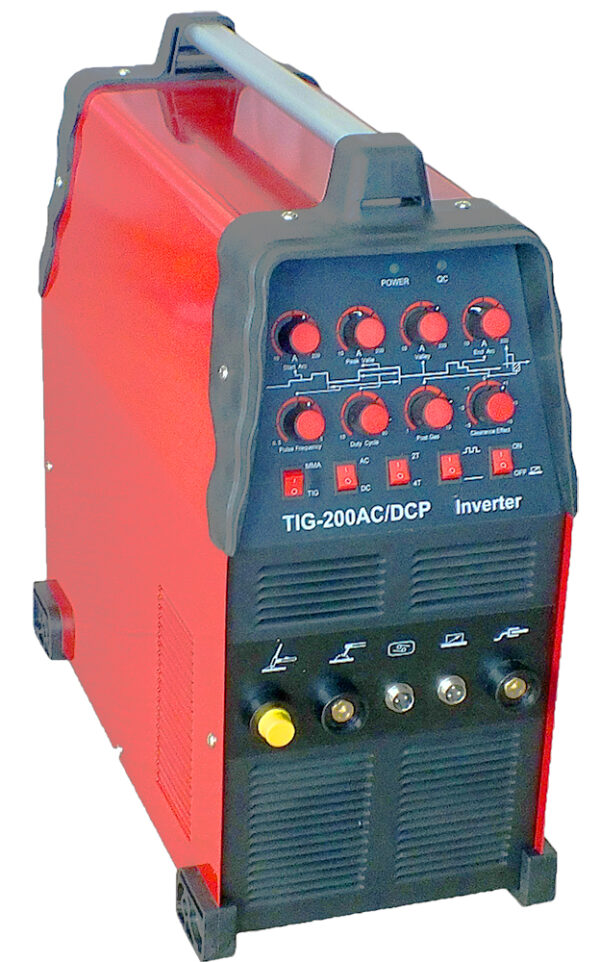

TIG WELDER: 200A AC/DC PULSE 1PH MULTI MIG TIG-200DAC
$1,560.00
* The TIG200DA is a 240V square wave AC/TC TIG inverter welder incorporating full TIG functionality including AC balance control, pre gas, down slope, post gas, variable pulse parameters, HF start with 2/4T trigger control
* The HF arc start provides easy arc ignition leaving no tungsten inclusion and no contamination of the tungsten electrode
* The Down Slope and Post Gas combined with the 2/4T trigger function gives you full control of the welder allowing you to control the start and finish of the weld process at a professional level
* AC balance control lets you set the AC TIG arc for cleaning of the oxide layer on aluminium and adjustment for a deeper penetrating weld
* Addition of the Foot Control provides variable amperage adjustment during welding.
| Weight | 29 kg |
|---|---|
| Dimensions | 0.72 × 0.03 × 0.56 cm |
Description
| DESCRIPTION | TIG Welder |
|---|---|
| BRAND | Multi-Mig |
| MODEL | TIG-200D |
| INPUT VOLTAGE | 240v |
| RATED INPUT POWER | 6.0KVA |
| RATED OUTPUT POWER | 5 – 200V |
| NO LOAD VOLTAGE | 9 – 68V |
| DUTY CYCLE (TIG) | 25% @ 200A |
| TIG THICKNESS RANGE | 1 – 8.0MM |
| EFFICIENCY | 80% |
| SSTICK CURRENT RANGE | 10 – 160A |
| STICK DUTY CYCLE @ 40c | 30% @ 160A |
| STICK ELECTRODE RANGE | 2.5 – 4.0mm |
| STICK WELDING THICKNESS | 2 – 12.0mm |
| WEIGHT NETT/GROSS | 26/29Kg |
| VOLUME | 0.0121cm |
