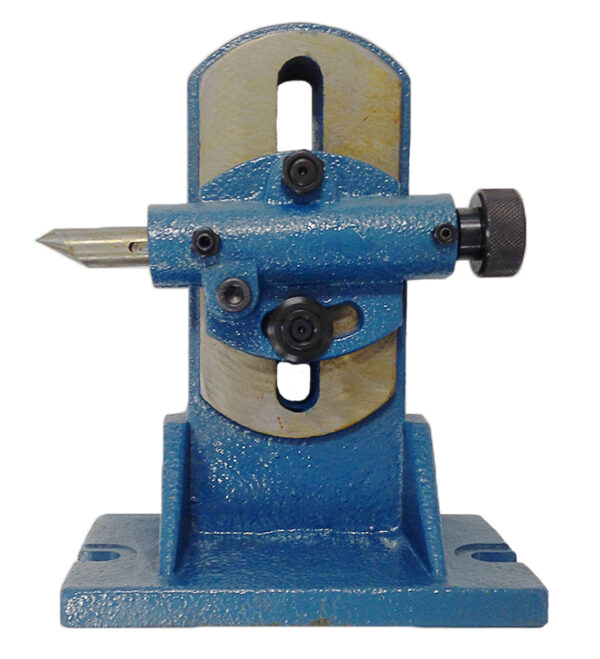

| MODEL: | TS-2 |
|---|---|
| TYPE | Tailstock |
| MAX HEIGHT: | 166mm |
| MIN HEIGHT | 103mm |
| BASE SIZE: | |
| WEIGHT NETT/GROSS | 5.1/ 5.3kg |
| VOLUME | 0.0047cm |
| PACKING SIZE L X W X H | 200 x 130 x 180mm |
Description
SKU : RT-9581052
Price per Unit
$185.00 (Exc GST)
$212.75 (Inc GST)
FEATURES:
* This Tailstock is suitable for the Vertex 8 & 10 Rotary tables and also the CC CS-6 8 Indexing fixtures * These tailstocks can also be used for other types of indexing fixtures *
| Weight | 5.3 kg |
|---|---|
| Dimensions | 0.2 × 0.13 × 0.18 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
