SURFACE GRINDER: PFG2045H
$38,500.00
Quality castings and Precision Japanese P4 ball bearing supporting the spindle
Coolant system with nozzle and flow control valve
Cast iron machine body and stand for maximum rigidity and smooth operation
Vertical dial graduations 0.01mm
Cross travel graduations 0.02mm
Manual one shot lubrication pump
Wheel balancing stand
400 x 200mm Magnetic Chuck
Diamond wheel dresser
Halogen work light
| Weight | 600 kg |
|---|---|
| Dimensions | 1.15 × 1.45 × 1.97 cm |
Description
| TABLE SIZE | 500 x 250 mm |
|---|---|
| MAX GRINDING LENGTH | 520mm |
| MAX GRINDING Width | 270 mm |
| DIST FROM TABLE to SPINDLE | 430 mm |
| MAX WORK LOAD | 200 Kgs |
| MAGNETIC CHUCK | 400 x 200mm |
| SPINDLE SPEED | 2800rpm |
| WHEEL DIMENSION | 200 x 20 x 31.75mm |
| SPINDLE MOTOR | 1.5 kw |
| HYD PUMP MOTOR | – |
| AUTO XFEED MOTOR | – |
| RAPID HEAD MOTOR | – |
| WEIGHT NETT/GROSS | 710/ 800 Kg |
| VOLUME | 3.2850cm |
| PACKING SIZE | 1150 x 1450 x 1970 mm |
Shipping & Delivery
Related products
BLADE/SURFACE GRINDER WT624
SKU:
KG-357223
SURFACE GRINDER: MJ115 6X12
SKU:
SGD324900
SURFACE GRINDER: SG-820 Table 500 X 280MM MANUAL
SKU:
SGD328200
* Quality castings and Precision
* Japanese P4 ball bearing supporting the spindle
* Coolant system with nozzle and flow control valve
* Cast iron machine body and stand for maximum rigidity and smooth operation
* Vertical dial graduations 0.01mm
* Cross travel graduations 0.02mm
* Manual one shot lubrication pump
* Wheel balancing stand
400 x 200mm Magnetic Chuck
* Diamond wheel dresser
* Halogen work light
SURFACE GRINDER: M820
SKU:
SGD329100
SURFACE GRINDER: SGD2550H 550 X AUTO
SKU:
SGD329200
* Hydraulic longitudinal table travel
* Quality castings and Precision Japanese P4 ball bearing supporting the spindle
* Coolant system with nozzle and flow control valve
* Cast iron machine body and stand for maximum rigidity and smooth operation
* Vertical dial graduations 0.01mm
* Cross travel graduations 0.02mm
* Manual one shot lubrication pump
* Wheel balancing stand and arbor
* 400 x 200mm magnetic chuck
* Diamond wheel dresser
* Halogen work light
SURFACE GRINDER: BGM-3060AH 355 X 38 X 127MM WHEEL
SKU:
SGD350300
* All casting are made from high tensile irons well ribbed tempered and stress relieved for the best rigidity and stability
* Guidways are coated with Turcite-B providing stable movementand durable accuracy * High precision spindle adopts P4 grade bearings
* Both spindle and motor are dynamically balanced
* Lubrication for this model is automatic with timer
* X axis is hydraulic feed Y axis is auto feed

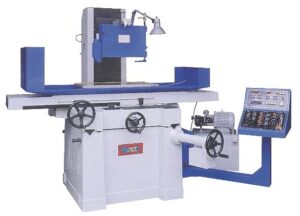

SURFACE GRINDER: PFG-CL-4080AH
