SURFACE GRINDER: SGD2550H 550 X AUTO
$15,300.00
SURFACE GRINDER: PFG-CL-4080AH
$60,000.00

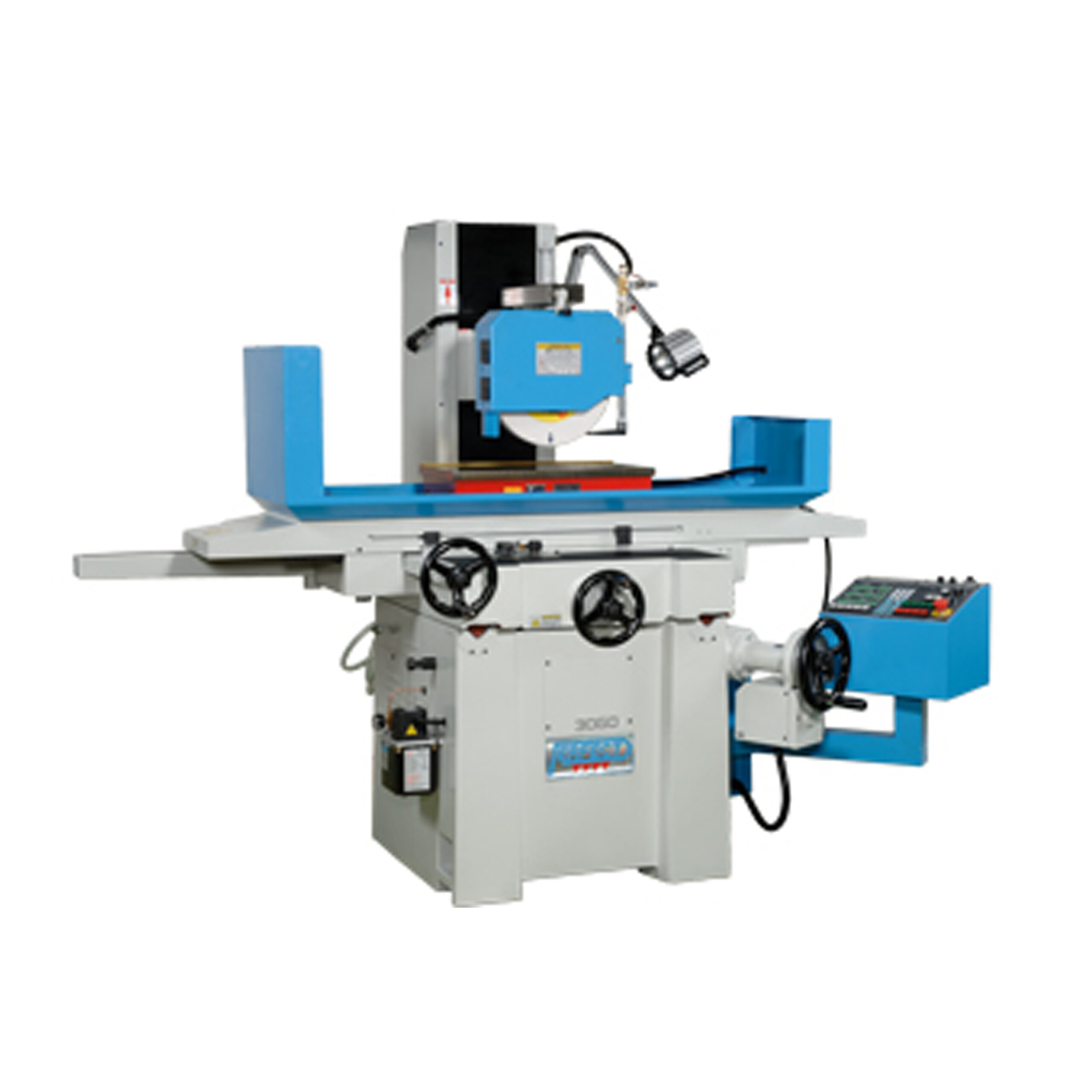

SURFACE GRINDER: BGM-3060AH 355 X 38 X 127MM WHEEL
$35,420.00
* All casting are made from high tensile irons well ribbed tempered and stress relieved for the best rigidity and stability
* Guidways are coated with Turcite-B providing stable movementand durable accuracy * High precision spindle adopts P4 grade bearings
* Both spindle and motor are dynamically balanced
* Lubrication for this model is automatic with timer
* X axis is hydraulic feed Y axis is auto feed
| Weight | 1950 kg |
|---|
Description
| MAX SUFACE GRINDING | 300 x 600mm |
|---|---|
| MAX DIST SPINDLE TABLE | 500mm (600mm Option) |
| TABLE SPEED | 5-25m/min |
| TABLE GUIDEWAYS | V & Flat Ways |
| RAPID HEAD ELEVATION | 450mm/min |
| AUTO DOWN FEED | 0.001 -0 .099mm/Time |
| WHEEL SPEED | 1450rpm |
| WHEEL DIMENSION | 355 x 38 x 127mm |
| SPINDLE MOTOR | 5hp |
| HYD PUMP MOTOR | 1Hp 3ph |
| AUTO XFEED MOTOR | 1/5Hp |
| RAPID HEAD MOTOR | 1/5hp |
| WEIGHT NETT/GROSS | 1700./1950kg |
| VOLUME | 8.4000cm |
Shipping & Delivery
Related products

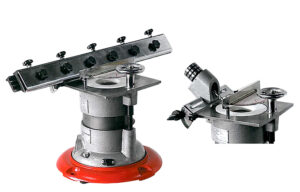

BLADE/SURFACE GRINDER WT624
