Back in Stock Soon

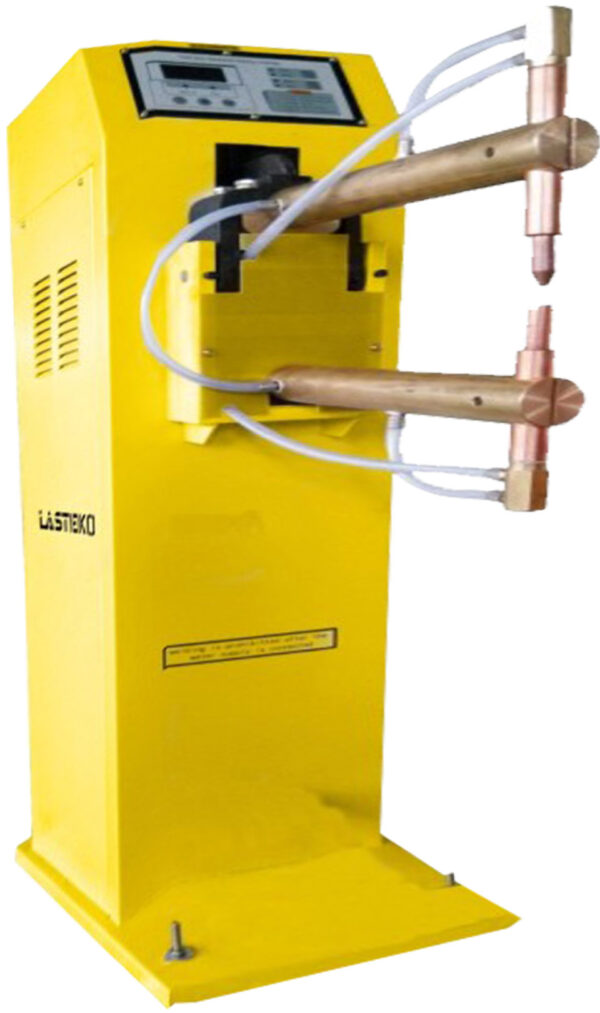

SPOT WELDER: DN1-25Q 25KVA 380V 2PH PNEUMATIC
$3,600.00
* Lastes model with digital display
* Welds 2.5mm + 2.5mm thickness
* Three phase 380V
* Rated Power 25KVA
* Rated duty cycle 20%
* Arm length from 300 – 700mm
* This model is fitted with isolation switch
* Also emergency stop button for safety
| Weight | 140 kg |
|---|---|
| Dimensions | 0.91 × 0.43 × 1.35 cm |
Description
| DESCRIPTION | Spot Welder – Pneumatic |
|---|---|
| MODEL | DN1-25Q |
| RATED VOLTAGE | 380V 2 Phase 50hz |
| RATED INPUT CAPACITY | 25kva |
| RATED PRIMARY CURRENT | 65.8 Amps |
| RATED DUTY CYCLE | 20% |
| NO LOAD VOLTAGE | 1.3.58v |
| MAX WELD THICKNESS | 2.5 + 2.5mm |
| ARM LENGTH | 300 – 700mm As Required |
| WEIGHT NETT/GROSS | 130 / 140kg |
| VOLUME | 0.528cm |
| PACKING L X W X H | 910mm x 430 x 1350mm |
| 3240 |
