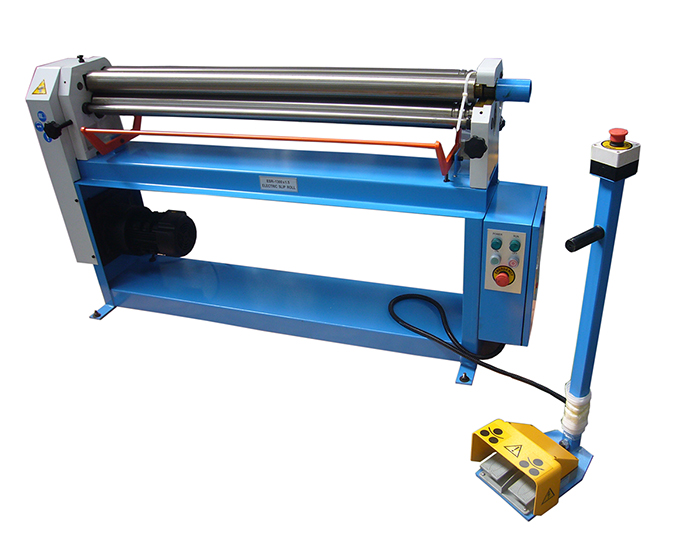

SLIP ROLLS: 1300MM X 1.6MM POWER 1HP 1 PH
$7,500.00
* Pinch style rolling
* Manual adjustments on the top roll
* Heavy duty gear box
* Lever type breaking system
* Grooves on the two rolls to do wires
* Mounted on a stand.
* Variable speed.
Weight | 430 kg |
---|---|
Dimensions | 1.92 × 0.61 × 1.34 cm |
SKU:
ROL131229
Category: Manual Rolls
Description
DESCRIPTION | Slip Rolls Width 1300mm |
---|---|
CAPICITY MILD STEEL | 1.6mm |
TOP ROLL DIAMETER | 75.0mm |
WIRE GROOVES | Yes |
MIN FORMING RADIUS | 112.5mm |
GEAR RATIO | – |
ROLL SPEED | 16rpm |
MOTOR | 0.75Kw 1 Phase |
WEIGHT NETT/GROSS | 400.0/430kg |
VOLUME | 1.0032cm |
PACKING L X W X H | 1920 x 610 x 1340mm |
