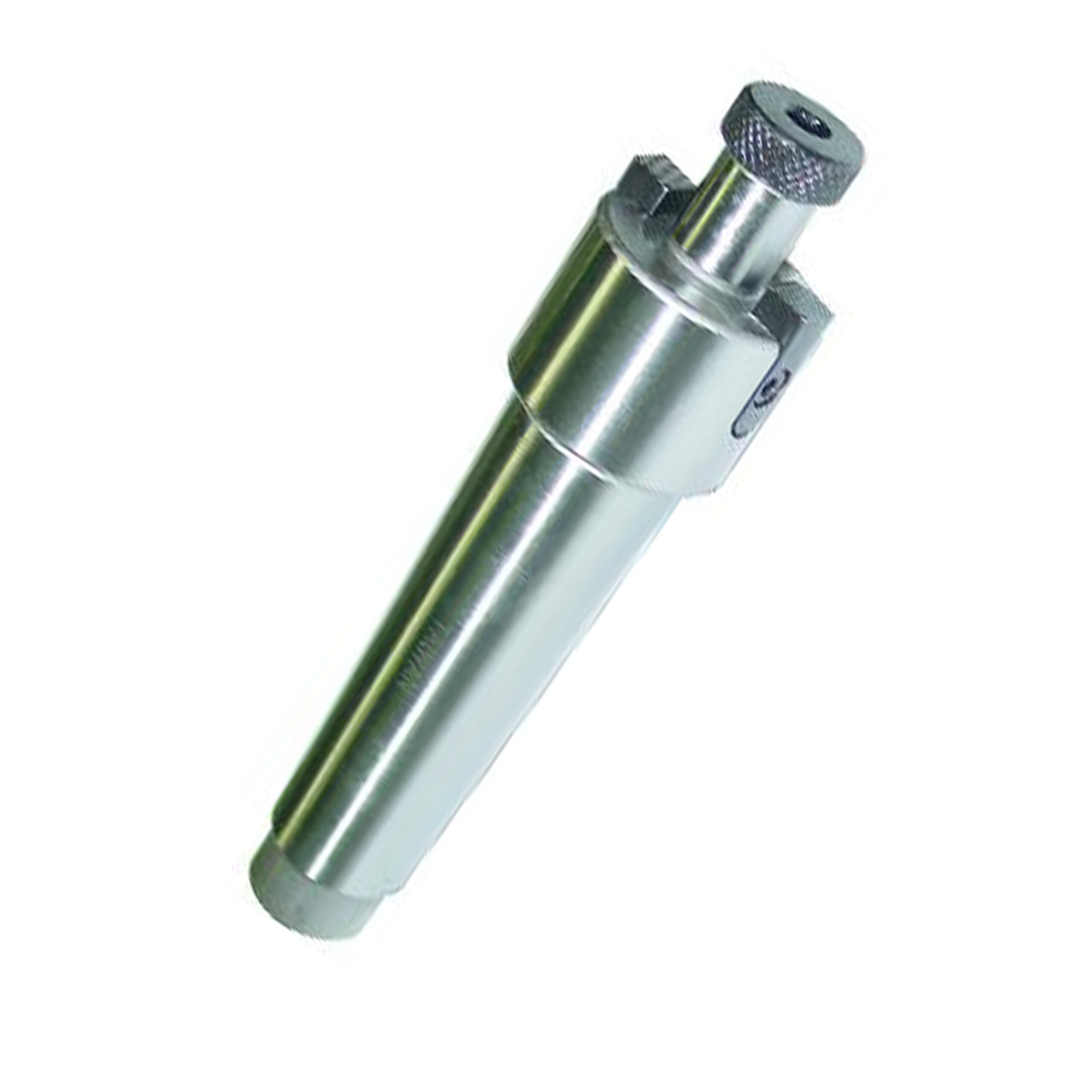

SHELL END ARBOR: MT4 X 1-1/4"
SHELL END ARBOR: MT4 X 1-1/4" $74.00
Back to products
JOBBER DRILL: 8.5MM M35 COBALT ETS
JOBBER DRILL: 8.5MM M35 COBALT ETS $7.70
Click to enlarge

Availability : In Stock

Price per Unit

ex-gst

$74.00

Inc-gst

$85.10

In stock

Print
Description

SKU : SEA9324038

Price per Unit

$74.00 (Exc GST)

$85.10 (Inc GST)

FEATURES:

* Shell end arbors are designed for mounting face cutters
* Two drive dogs slot into the face cutter head to provide positive drive when milling
* Cap screw is provided to retain cutter head
* A draw bar thread is provided to pull the arbor up into the taper for a firm hold


Weight 1.4 kg
Dimensions 0.18 × 0.07 × 0.07 cm
Compare
Add to wishlist
Specifications
Description
EXTERNAL TAPER MT4
SPIGOT DIAMETER 1-1/2″
SPIGOT LENGTH 23.0mm
DRAW BAR THREAD M16 X 2
LENGTH O/A 170mm
WEIGHT NETT/GROSS 1.40/1.4Okg
VOLUME 0.0009cm
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SHELL END ARBOR: MT4 X 1-1/2″”
