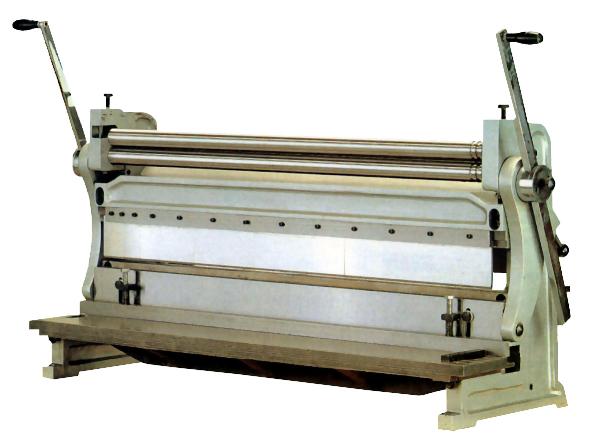

SHEAR ROLL BEND: 1050 X 1.5MM 3 IN ONE

$2,900.00

* 1.5mm Max Shear & Bending for extra capacity
* Also increased minimum rolling diameter of 62mm
* This unique machine offers three features in the one machine
* On top is a set of rolls
* In the centre is a bender with removable fingers which work on the same principle as a small press brake
* On the lower level of the machine is the shear which has a cast table and a clamping bar to hold the workpiece
* The machine is a heavy cast construction and can be bench mounted on a stand
* Ideal for small workshops where space is a problem

Weight 230 kg
Dimensions 1.32 × 0.55 × 0.83 cm

In stock

SKU: SFR131350 Category:
Description
ROLLER 20120930
MAX WIDTH 1050mm
MAX SHEARING 1.0mm
MAX BENDING 1.5mm
BENDING DEG 90 Deg
MIN ROLLING DIA 62.0mm
WEIGHT NETT/GROSS 210/230kg
VOLUME 0.6026cm
PACKING SIZE L X W X H 1320 x 550 x 830mm
