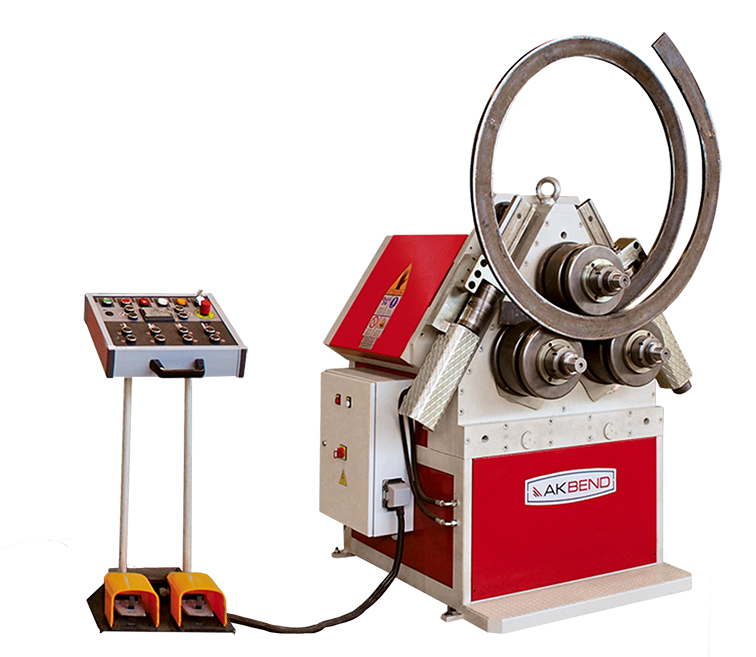

MODEL | APK 61 |
---|---|
TYPE | Hydraulic Profile Bending |
ROLL DIAMETER | 177mm |
SHAFT DIAMETER | 60.0mm |
BENDING SPEED | 5.5 M/Min |
CAPACITY ROUND SOLID | 40.0mm Dia |
CAPACITY PIPE | 2 Inch |
CAPACITY SQUARE SOLID | 35 X 35.0mm |
CAPACITY RECT SOLID | 80 X 20.0mm |
CAPACITY ANGLE IRON | 60 X 6.0mm |
CAPACITY SQUUARE BOX | 45 X 45 X 3.0mm |
MOTOR | 4.0 Kw |
WEIGHT NETT/GROSS | 980 Kg |
VOLUME | 1.69cm |
Description
SKU : SRM131700
Price per Unit
$26,100.00 (Exc GST)
$30,015.00 (Inc GST)
FEATURES:
* The machine is fabricated of steel construction
* Torque limiting device protection from overload during bending
* Shafts are made of special steel hardened and ground
* Lower rolls hydraulic moveable up and down
Weight | 980 kg |
---|
