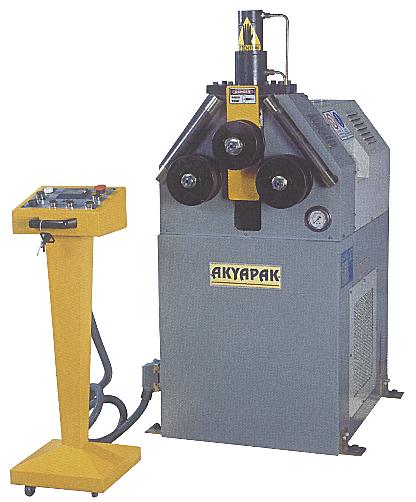

SECTIONAL ROLL MACH: AKYAPAK APK 50 - Image 1
Click to enlarge

SECTIONAL ROLL MACH: AKYAPAK APK 50

Excl. GST: $19,200.00
Incl. GST: $22,080.00

* Universal Hydraulic profile bending machine is fabricated of steel construction
* Easy following of moving rolls from control panel
* Shafts are made of special steel hardened and ground.

Weight 530 kg
Dimensions 1.45 × 0.95 × 1.45 cm
PLEASE ENQUIRE
Add to compare
Add to wishlist
SKU: SRM131680 Category:
Description
MODEL APK -50
TYPE Hyd Profile Bending M/C
ROLL DIAMETER 157mm
SHAFT DIAMETER 50.0mm
BENDING SPEED 2.95 M/Min
CAPACITY ROUND SOLID 40.0mm Dia (800 mm Min Dia)
CAPACITY PIPE 70 x 2.0mm Dia (1600 mm Min Dia)
CAPACITY SQUARE SOLID 35 x 35.0mm (1400 mm Min Dia)
CAPACITY RECT SOLID 80 x 20.0mm ( 1200 mm Min Dia)
CAPACITY ANGLE IRON 50 x 50 x 5.0mm ( 1200mm Min Dia)
CAPACITY SQUUARE BOX 60 x 60 x 3.0mm (4000mm Min dia)
MOTOR 1.1 Kw
WEIGHT NETT/GROSS 530kg
VOLUME 1.9974cm
W x L x H 1450 x 1000 x 1450
