MODEL | VS-T120-30 |
---|---|
AIR FLOW | 159cfm |
PUMP | Screw Type |
DISCHARGE PRESSURE | 8 – 13 Bar |
METRES/MIN | 4.5 |
COOLING | Air |
OUTLET PIPE DIAMETER | 1-1/4″ |
VOLUME LUBE OIL | 11 Litres |
NOISE LEVEL | 60db |
MOTOR POWER | 40hp |
SPEED | 2935rpm |
VOLTAGE | 667/684 |
WEIGHT NETT/GROSS | 687/690kg |
VOLUME | 2.1041cm |
Availability : Enquire Now
Price per Unit
ex-gst
$14,200.00Inc-gst

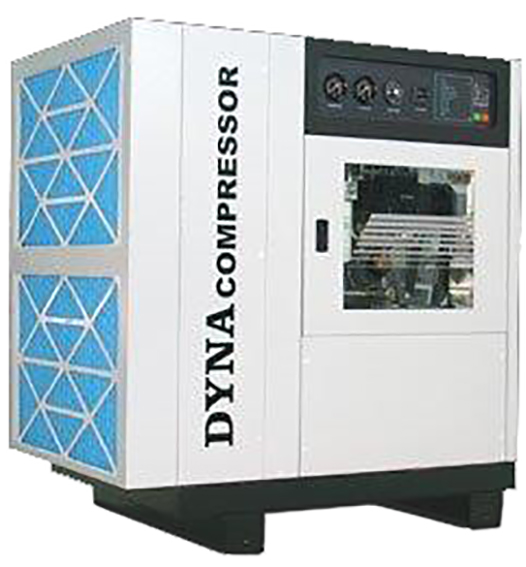

$16,330.00SCREW COMPRESSOR: DYNA-VS 40HP 159CFM
SKU : CP-940430
Price per Unit
$14,200.00 (Exc GST)
$16,330.00 (Inc GST)
FEATURES:
* These Wariable Speed screw compressor are energy efficient and power saving
* Mounted in a soundpfoof cabinet and has a noise level opf 70dba
* High reliability and variable speeds increase energy saving and reduce the failure rate
* Thus will guarantee long service life
* With the Dyna inverter control system it changes the rotational speed acording to the demand placed on the compressor
* Average utilization rates of most compressors is 50-70%, with inverter as PID constant pressure is currently the best – it is the most efficient control mode
* The dust filter is mounted on the rear of the machine for easy filter change
* Fitted with oil/air seperating system with air discharge of 2 ppm *
Weight | 410 kg |
---|---|
Dimensions | 0.8 × 0.5 × 0.7 cm |
