ROTARY TABLE: HV-4 4″ ALTO

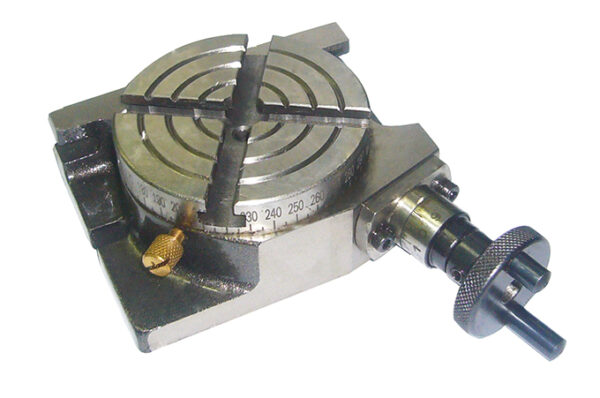

* This 4" Tilting rotary table is a very versitile unit * Tilting range is 0 - 90 Degrees with positive locking * Table diameter is 100mm * Worm gear ratio 1:36 = 1 rotation will increase by 10 degrees * Graduated indexing dial to 360 derees * Centre height in verticle = 66.0mm approx Hand wheel is graduated in 10 min divisions and can be set at zero * Comes with tee slots in table * Can be bolted in verticle or horizontal position

* Homge Rotary Tables are made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

DESCRIPTION Dividing Plates TYPE DP-3 Indexing NUMBER OF PLATES DIAMETER TO SUIT HV-16 Rotary Table WEIGHT NETT/GROSS 4.424/4.426kg VOLUME 0.0029cm

* This Tailstock is suitable for 3", 4" 6"Rotary Tables * Also suitable for other indexing fixtures like super spacers, dividing heads etc * This tailstock center can be reversed offering a minium height of 26.0mm and max height of 116mm *
