PUNCH & SHEAR: BZ-45 45 TON BENZEL
$14,000.00
* The 45 ton is a special design to cater for all punching, shearing and cropping operations
* Ideal machine in any small workshop.
* Compact iron worker with vertical movement at all stations.
* Fast cylinder stroke improves efficiency.
* Italian pump and ALTOS valves.
* Benzel use the same size punch & dies as Sunrise
* The entire movement is straight up & down which allows the machine to be able to be used for pressing.
| Weight | 1095 kg |
|---|---|
| Dimensions | 1.1 × 0.7 × 1.6 cm |
Description
| MODEL | BZ-45 |
|---|---|
| PUNCHING FORCE | 45T |
| PUNCHING CAPACITY | ø20mm x 12mm |
| THROAT DEPTH | 175mm |
| MAX STROKE | 50mm |
| FLAT SHEARING | 200 x 12mm |
| ANGLE CUTTING | 100 x 10mm @ 90° 70 x 6mm @ 45° |
| MOTOR | 3kW 415V |
| WEIGHT NET/GROSS | 1,055kg/ 1095 |
| VOLUME | 1.232 |
| PACKING SIZE L X W X H | 1,100 x 700 x 1,600mm |
| OIL TANK CAPACITY | 12Ltrs Hydraulic Oil 46 |
Shipping & Delivery
Related products

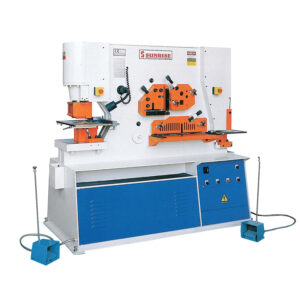

PUNCH & SHEAR: IW-100SH 100TON SUNRISE-HYD CLAMP
SKU:
PNS160669
* The double cylinder “S” series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, and reliability.
* Standard with two foot control pedals, meaning separate operations can be safely performed simultaneously.
* Factory fittrd with hydraulic plate clamping facility, and auto touch & cut systems.
* The low pressure setting for tool change provides maximum operation safety.
* The long punching cylinder stroke and deep throat enable mounting of a wide range of special equipment.
* The large punching base with the “T-slot” fixing provides a solid base for securing the punching tooling, along with a wide range of optional and custom designed tooling.
SINGLE VEE PRESS BRAKE: SUNRISE
SKU:
PNS600200
ANGLE BENDING PRESS: SUNRISE
SKU:
PNS600210

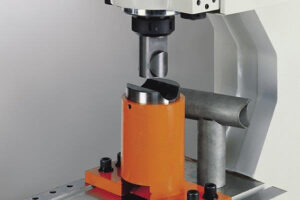

PIPE NOTCHING ATTACHMENT:
SKU:
PNS600214
LARGE VEE NOTCHER: SUNRISE
SKU:
PNS600220
LARGE HOLE PUNCHING: SUNRISE
SKU:
PNS600230

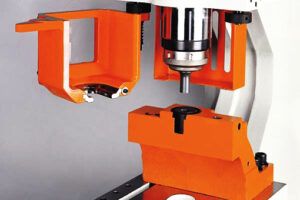

GOOSE NECK HOLDER: SUNRISE FOR 47mm OR 60mm Dies
