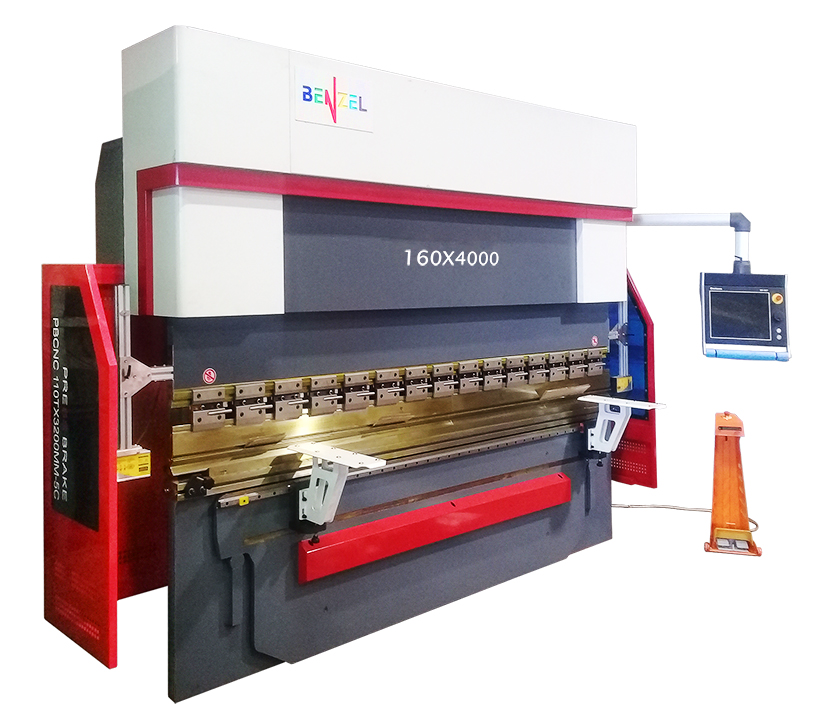

PRESS BRAKE: BENZEL PBCNC 60T X 1300MM-7C DELEM DA66T
$89,000.00
* Strong welded steel structure Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* DELEM Touch screen Controller DA66T. AKAS (Germany) CE Laser guard
* Front support moveable on guide rails
* Quick clamping top tool. Bottom tool on guide rails
* Segmented top and bottom tool *
| Weight | 1850 kg |
|---|---|
| Dimensions | 1.4 × 2 × 2.2 cm |
Description
| MODEL | PBCNC 60 x 1300 |
|---|---|
| PRESSING FORCE | 60 T |
| BENDING LENGTH | 1300 mm |
| STROKE | 80 mm |
| MAX DAY LIGHT | 320 mm |
| CONTROLLER | DA-66T |
| DISTANCE BETWEEN COLUMN | 1000 mm |
| THROAT DEPTH | 200 mm |
| APPROACH SPEED | 80 mm |
| PRESSING SPEED | 8 mm |
| RETURN SPEED | 90mm |
| MOTOR POWER | 11 Kw |
| CONTROLLER TYPE | Delem DA66T |
| LIGHT GUARD TYPE | Akas Laser Safe |
| WEIGHT NETT/GROSS | 4,700 / 4,850kg |
| VOLUME | 6.1600cm |
| PACKING SIZE L X W X H | 1400mm x 2000mm x 2200mm |
Shipping & Delivery
Related products
PRESS BRAKE: 2 AXIS WC67E -80T X 3200MM ESTUN 200P
SKU:
PBK100085
* Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder.
* Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability.
* Hardened ball screw on back gauge with manual crowning arrangement.
* Front support can be easily adjusted and moved depending on the sheet width.
* Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
* Conveniently mounted control box on pendant for quick swivel and adjustments.
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
PRESS BRAKE: 2 AXIS ADH WC67E-160T X 4000MM ESTUN E200P
SKU:
PBK100102
* Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder
* Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability.
* Hardened ball screw on back gauge with manual crowning arrangement
* Front support can be easily adjusted and moved depending on the sheet width
* Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access
* Conveniently mounted control box on pendant for quick swivel and adjustments
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
PRESS BRAKE: BENZEL PBCNC 63T X 2600MM-4C DELEM DA58T
SKU:
PBK100285
PRESS BRAKE: BENZEL PBCNC 110T X 3200MM-5C DELEM DA66T
SKU:
PBK100290
* Strong welded steel structure
* Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* Delem DA56 controller, Akas laser safe system
* One set of Top and Bottom tool
* Front support on guide rails
* Hydraulic crowning.
PRESS BRAKE: BENZEL PBCNC 150T X 4100MM-5C DELEM DA66T
SKU:
PBK100293
* Strong welded steel structure Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* Delem Touch screen Controller DA66T.
* Akas (Germany) CE Laser guard
* Front support moveable on guide rails
* Quick clamping top tool. Bottom tool on guide rails
* Segmented top and bottom tool *
PRESS BRAKE: BENZEL PBCNC 250T X 4200MM- 3C DELEM DA58T
SKU:
PBK100315
PRESS BRAKE: BENZEL PBCNC 500TX 8200MM- 4C DELEM DA66T
SKU:
PBK100430
* Strong welded steel structure Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* Delem Touch screen Controller DA66T.
* Akas (Germany) CE Laser guard
* Front support moveable on guide rails
* Quick clamping top tool. Bottom tool on guide rails
* Segmented top and bottom tool
PRESS BRAKE: GASPARINI EASY PRESS 115T x 3000MM
SKU:
PBK100760
* If you are looking for a tough and simple press brake, Gasparini X-Press Easy is the answer. It's the ideal machine for the most common processes without forgoing Italian manufacturing and high-quality components.
* X-Press Easy has what it takes to win over those who want a fast return on investment without lowering production quality.
* Ram speed 200 mm/s (~8 in/s), X-axis speed 500 mm/s (~20 in/s)
* DSP-AP laser safety: lowered speed change point and auto-blanking for box bending
* 4 axes Y1Y2-X-R, with 6-axes option adding Z1-Z2
* Manual or pneumatic upper and lower clampings
* Customizable daylight and stroke
* Updated design
* New coded security doors
* High-gloss anti-dirt water-based paint
* Frame produced in Italy by Gasparini, accurately dimensioned through FEA
* Bosch-Rexroth hydraulic valve block, pump and valves
* Heidenhain linear optical encoder with 1-µm resolution
* Bosch linear bearings, Gudel racks and pinions
* Panasonic brushless motors and drives
