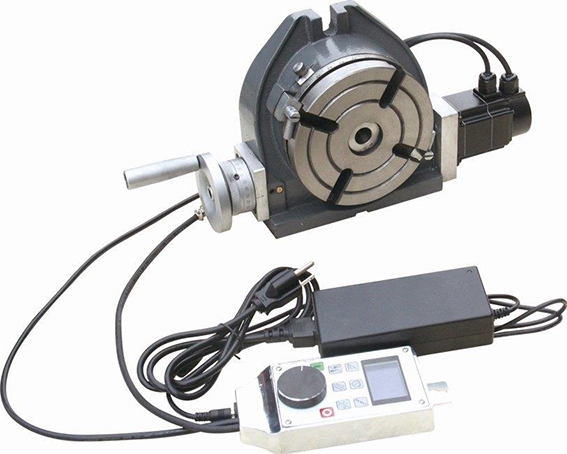

POWER ROTARY TABLE: 8″ LIBO
$2,100.00
* Table is made from high density Meehanite casting with ground finish
* Tested by Heidenhain electronic testing equipment to ensure the utmost quality
* Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions
* Worm is hardened and ground and has a ratio of 90:1
* The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø
* Micro collar is graduated in steps of 1’min and vernier scale makes settings down to 10 seconds possible
* These rotary tables are popular for their excellent performance practical design and affordable cost
* Widely used for circular cutting work angle setting boring
*
Controller has three wires, one of them is for powercord conected to DC 24W – 48V. Motor should be conected to 4 pin aviation socket and motor encoder should be connected to the 6 pin aviation conector
| Weight | 25.5 kg |
|---|---|
| Dimensions | 0.34 × 0.35 × 0.18 cm |
In stock
Description
| DESCRIPTION | Power Rotary Table 8″ |
|---|---|
| TYPE | Rotary Table |
| TABLE HEIGHT HORIZONTAL | 100mm |
| HEIGHT VERTICAL | 285mm |
| T-SLOT SIZE | 14.0mm |
| CONTROLLER | Portable Set with Screen |
| VOLTAGE | 24v |
| TORQUE | 4.5nm |
| WEIGHT NETT/GROSS | 24.5 / 25.5kg |
| VOLUME | 0.0401cm |
| PACKING SIZE L X W X H | 340 x 350 x 180mm |
| 1890 |
