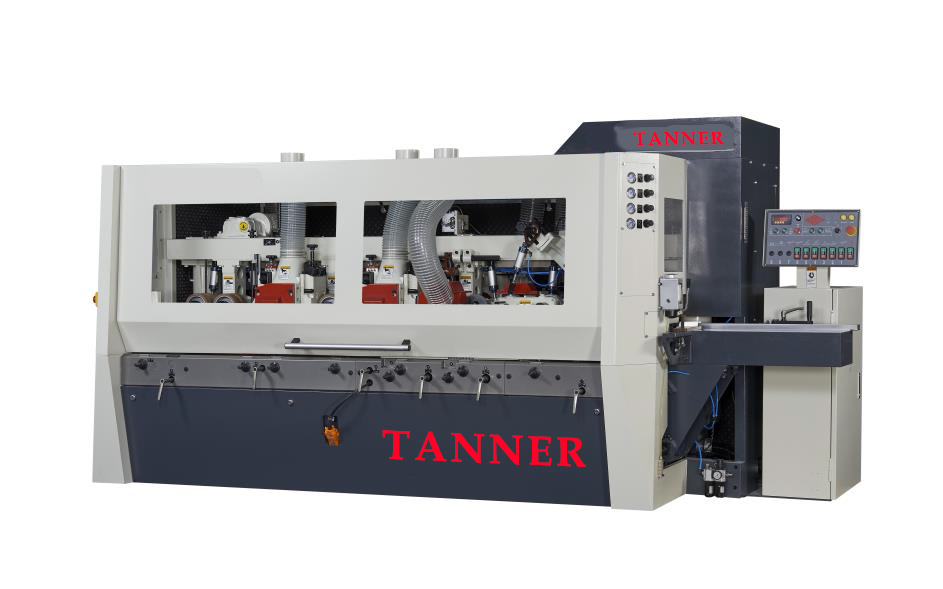

PLANER: TANNER FOUR SIDER 300MM 20HP H/DUTY
$0.00
* TANNER SKD-300/6 side Planer
* Industrial quality machine with table surface of high ductile cast iron
* Cutterhead guard is manufactured from HSS, heat treated
* Numerical control panel allows sizing adjustment of cutters for convenience and rapit settings
* Fitted with overload protection
* Feeding can be opperated in jog mode for accurate settings
Three phase motor drive.
Powerful motor drive for each spindle.
Digital position control for accurate and easy setting.
6,000 rpm high spindle speed.
Compact construction. Maximum stability.
Variable feed speed.
See-thru top guard.
* Powerful 20hp motors top & bottom
| Weight | 730 kg |
|---|---|
| Dimensions | 1.35 × 1.14 × 1.13 cm |
Description
| CUTTING WIDTH | 300mm |
|---|---|
| MAX CUTTING HEIGHT | 10.0 – 150mm |
| MIN LENGTH | 230mm |
| CUTTER SPINDLE DIAMETER | 50.0mm |
| DIAMETER OF CUTTER HEADS | 140.0mm ( Six spindles in total) |
| TABLE AREA | 1200 x 685mm |
| FEED ROLLER DIAMETER | 100mm |
| FEED SPEEDS | 11-52 ft/min. |
| TABLE LENGTH | 1200mm infeed |
| CUTTERHEAD SPEED | 6000mm |
| VERTICLE SPINDLE ADJUSTMENT | 30.0mm |
| HORZ SPINDLE ADJUSTMENT | 30.0mm |
| ELEVATION MOTOR | 1hp |
| FEED MOTOR | 10hp (Infinitely Variable) |
| TOP SPINDLE MOTORS | 20hp |
| BOTTOM SPINDLE MOTOR | 20hp |
| OTHER SPINDLE MOTORS | 15hp |
| WEIGHT NETT/GROSS | 635/730kg |
| VOLUME | 1.7391cm |
| PACKING L X W X H | 1350 x 1140 x 1130 mm |
