PLANER: MB-104 16" 4HP 1PH
$2,300.00

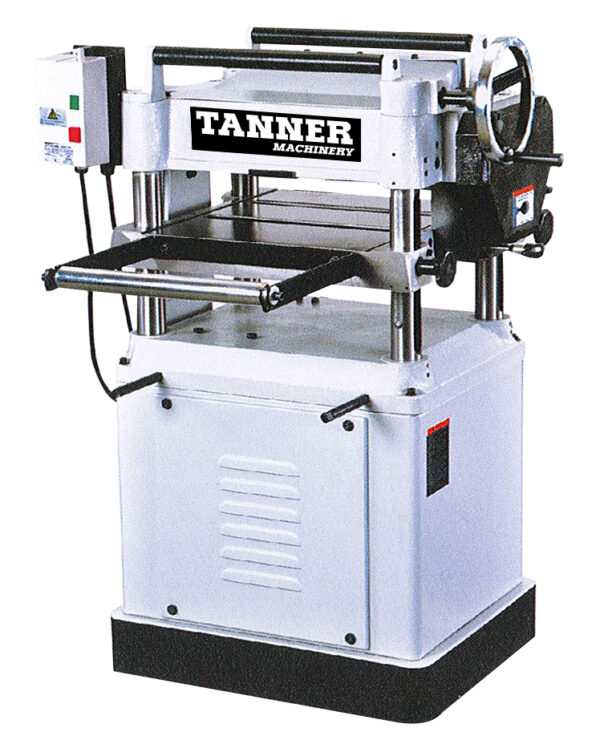

PLANER: TANNER 16″ 2.5HP 1PH MOTOR UNDER
$2,700.00
* This Tanner 16: Planer comes with a 2.5hp single phase motor
* Equiped wilh three knife 72.0mm cutterhead
* Serrated steel infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining
| Weight | 259 kg |
|---|---|
| Dimensions | 0.83 × 0.62 × 1.165 cm |
In stock
Description
| CUTTING WIDTH | 406mm |
|---|---|
| CUTTING HEIGHT | 204mm |
| MIN LENGTH | 200mm |
| MAX CUTTING DEPTH | 1.1mm |
| FEED SPEEDS | 2 |
| FEED RATE | 4.8-8.4 M/Min |
| TABLE SIZE | 453 x 406mm |
| KNIVES | 3 |
| SPEED | 5000rpm |
| MOTOR | 2.5hp Single phase |
| INFEED ROOLS | Serrated Steel |
| WEIGHT NETT/GROSS | 240/259kg |
| VOLUME | 0.5995cm |
| PACKING SIZE L X W X H | 1100 X 700 X 1160mm |
| 2755 |
