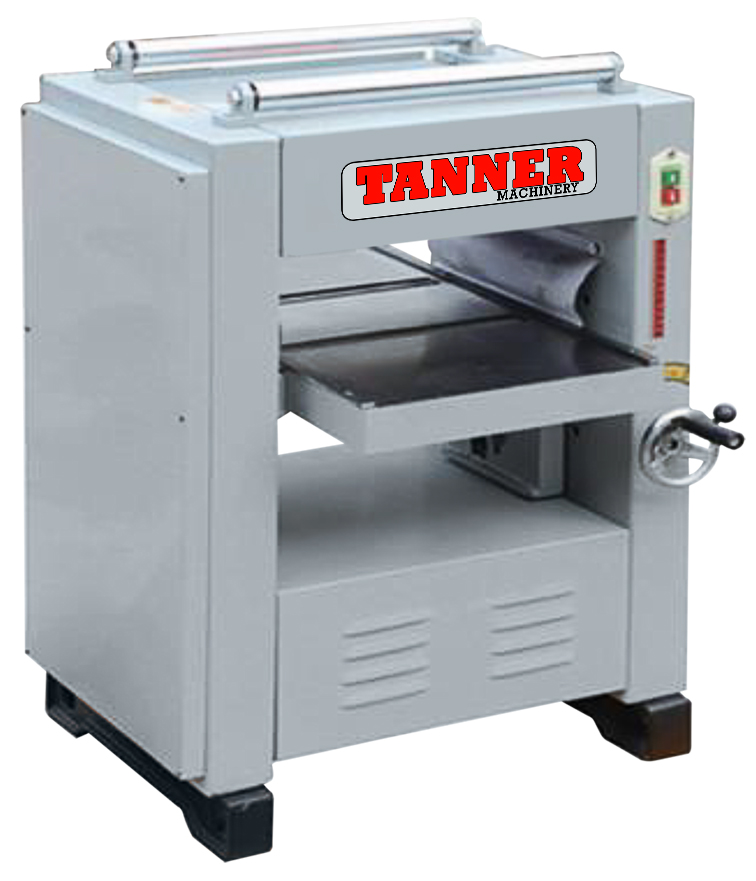

| DESCRIPTION | Wood Planer |
|---|---|
| MODEL | TP103 |
| MAX CUTTING WIDTH | 300mm |
| MAX CUTTING THICKNESS | 120mm |
| MIN WORKING THICKNESS | 10.0mm |
| MIN WORKING LENGTH | 200mm |
| MAX CUTTING DEPTH | 4.0mm |
| FEED SPEED | 13.5m/min |
| DIA OF CUTTER HEAD | 77.0mm |
| CUTTER HEAD SPEED | 4500rpm |
| BLADES – CUTTER HEAD | 3pcs – 300 x 25 x 3.0mm |
| MOTOR | 1.5kw (2hp) 1 Phase |
| WEIGHT NETT/GROSS | 135/155kg |
| VOLUME | 0.4074cm |
| PACKING SIZE L X W X H | 670 x 640 x 950mm |
Description
SKU : TKN112122
Price per Unit
$1,600.00 (Exc GST)
$1,840.00 (Inc GST)
FEATURES:
* This machine comes with a powerful 1.5kw single phase motor
* Equiped will three knife cutterhead
* Serrated infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Fully enclosed carbnet stand
* Overhead rollers for passing workpiece over when re-machining
| Weight | 155 kg |
|---|---|
| Dimensions | 0.67 × 0.64 × 0.95 cm |
Specifications
Description
