| MODEL | 100A BE1AS |
|---|---|
| DESCRIPTION | Asada, Beaver |
| THREADING RANGE | 1/4″ – 4″ |
| MOTOR | 1140w 1 Phase |
| DIES INCLUDED | 1/2″ – 4″ BSPT |
| DIE HEADS | 1 x Auto 1/2″ To 2″, & 1 x Auto 2-1/2″ To 4″ |
| WEIGHT NETT/GROSS | 95kg |
| VOLUME | 0.5600cm |
| PACKING DIMENSIONS | 1,000mm x 700 x 800mm |
Back to products
ROLL GROOVING ATTACHMENT
$2,950.00
Description
SKU : PIT250020
Price per Unit
$11,755.00 (Exc GST)
$13,518.25 (Inc GST)
FEATURES:
* Double Insulated
* The latest technology was utilized in these models to meet the international safety standard
* Equipped with overload switch for motor protection
* The powerful 1140w motor with unique design allows high speed threading – (BSPT 4/ 90 seconds)
* Spindle speeds 48 – 18 rpm (2 spped) No load
| Weight | 95 kg |
|---|---|
| Dimensions | 1 × 0.7 × 0.8 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
PIPE THREADER: PORTABLE 230V 1/2″-2″ BSPT HSS DIES
SKU:
PIT240110

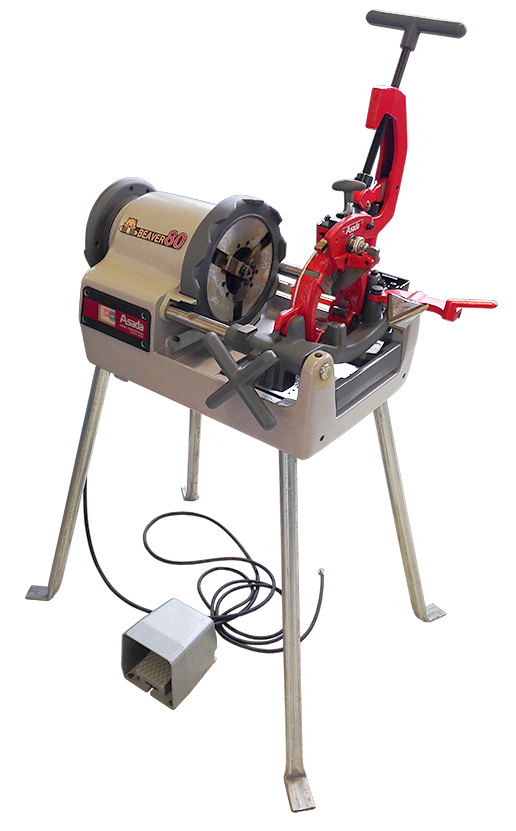

PIPE THREADER: ASADA BEAVER 80AT + FOOT SWITCH
SKU:
PIT250010
* Die-head has automatic profiling system to reduce cutting resistance
* Dies made from special pre-heat treated steel ensuring long life and easy threading
* Lots of threading power
* Class F insulation grade on the motor allows continuous operation
* Ideal for job site with poor power supply
* Low revolutions/high capacity oil pump gives improved longevity
* Hammer chuck has easy-grip outer ring
* Jaw body has wider guide and improved durability
* Operating range of jaw insert increased
ROLL GROOVING ATTACHMENT
SKU:
PIT250025
PIPE THREADER: ASADA BEAVER 25
SKU:
PIT250200
* Die-head has automatic profiling system to reduce cutting resistance
* Dies made from special pre-heat treated steel ensuring long life and easy threading
* Lots of threading power
* Class F insulation grade on the motor allows continuous operation
* Ideal for job site with poor power supply
* Low revolutions/high capacity oil pump gives improved longevity
* Hammer chuck has easy-grip outer ring
* Jaw body has wider guide and improved durability
* Operating range of jaw insert increased
