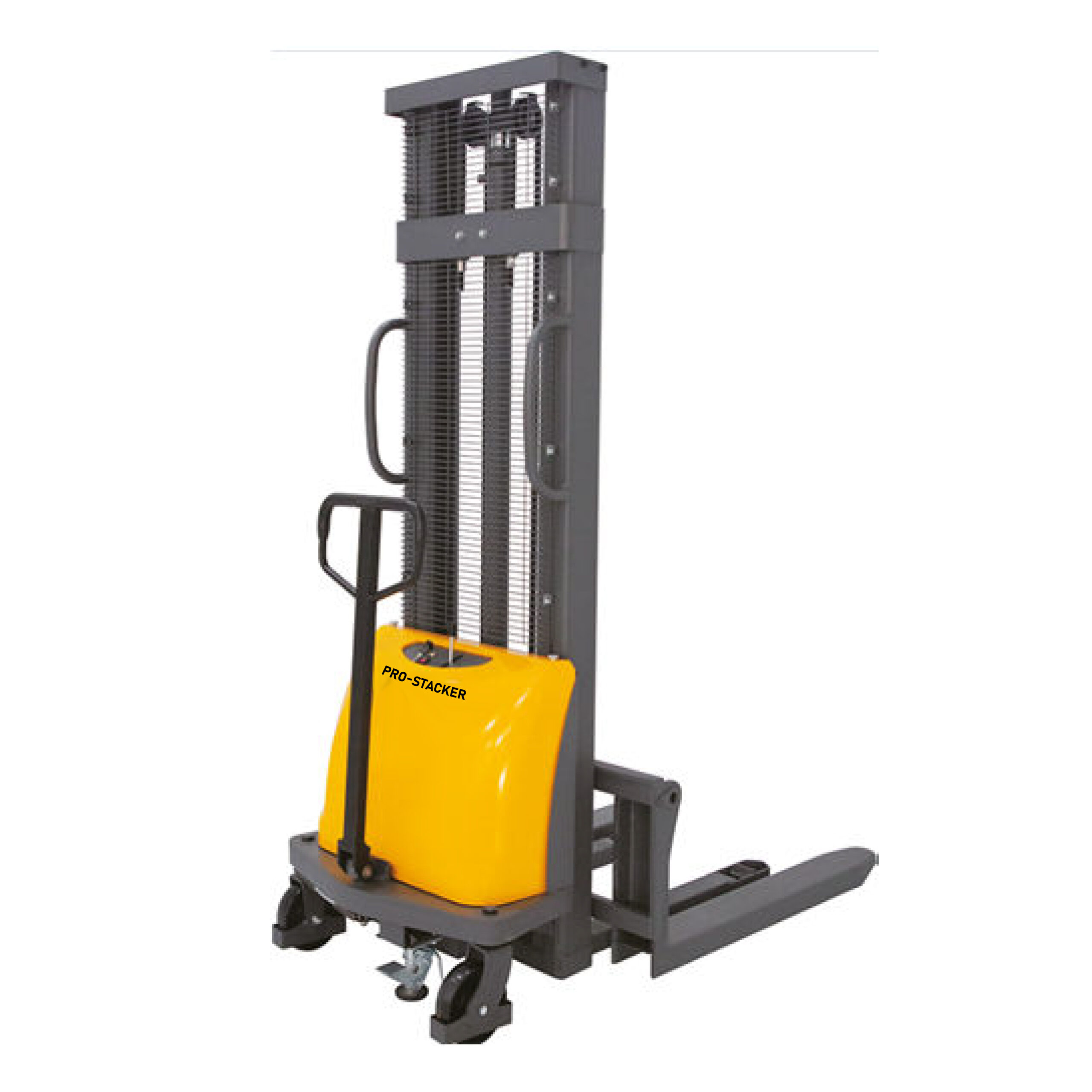

PALLET STACKER: 3 METER LIFT 1500KG ELECTRIC 12V
$3,950.00
* This powerful electric pallet stacker comes complete with 120Ah battery and charger
* Compact design with strong steel construction
* Smooth control when lifting under load and walk behind
* Main lift motor is 1.5kw
* Hydraulic pump is from Germany
* Drive motor is brushless type
* Braking system by machanical
* Explosion proof valve is fitted to cylinder in case of failier
* Steering mechanism is driven by chains and requires small sering force
* Fitted with foot brake for added safety
This electric stacker conforms to ISO3691-1, EN1175-1, EN16307-1
| Weight | 415 kg |
|---|---|
| Dimensions | 1.745 × 0.98 × 2.145 cm |
In stock
Description
| MODEL | CDD15B-E |
|---|---|
| CAPACITY | 1500Kg |
| MAX HEIGHT | 3000mm |
| MAST HEIGHT | 2145mm |
| MINIMUM HEIGHT | 90.0mm |
| FORK LENGTH | 1070mm |
| LENGTH O/A | 1745mm |
| FORK ADJUSTABLE RANGE | 300 – 930mm |
| BODY WIDTH O/A | 960mm |
| WHEEL SIZE (FRONT) | 180 x 50.0mm |
| LOADING CAPACITY | 3000kg |
| LIFTING SPEED-LOADED/UNLOADED | 0.05/0.08m/s |
| BRAKING | Mechanical |
| LIFTING MOTOR | 1.5kw |
| BATTERY | 12v/120ah (Included) |
| BATTERY WEIGHT | 45kg |
| CHARGER | 12v 15amp |
| WEIGHT NETT/GROSS | 415kg |
| VOLUME | 3.6682cm |
| PACKING SIZE L X W X H | 2145 x 980 x 1745mm |
Shipping & Delivery
Related products
PALLET TRUCK: 380 X 800MM 500KG
SKU:
HJP298680
PALLET TRUCK: 685 X 1220MM 2500KG GALVANISED
SKU:
HJP298742
PALLET TRUCK: 685 X 1220MM 3000KG W/SCALES TOYAMA
SKU:
HJP298745
PALLET TRUCK: 685 X 1150MM 2000KG ELECTRIC 24V W/BEHIND
SKU:
HJP298860
* This powerful electric pallet truck comes complete with 105Ah batery
* Compact design with strong steel construction
* Smooth control when lifting under load and walk behind
* Fitted with a Gel 105ah battery & charger
* Drive motor is brushless type
* Braking system: Electromagnetic - regenetative
PALLET TRUCK: 685 X 1150MM 3000KG ELECTRIC 24V W/BEHIND
SKU:
HJP298864
* This powerful electric pallet truck comes complete with 180Ah batery and charger
* Compact design with strong steel construction
* Smooth control when lifting under load and walk behind
* Main lift motor is 1.5kw
* Fitted with lithium Iron 120ah battery
* Hydraulic pump is from Germany
* Drive motor is brushless type
* Controller is by Curtis from USA
* Braking system: Electromagnetic - regenetative

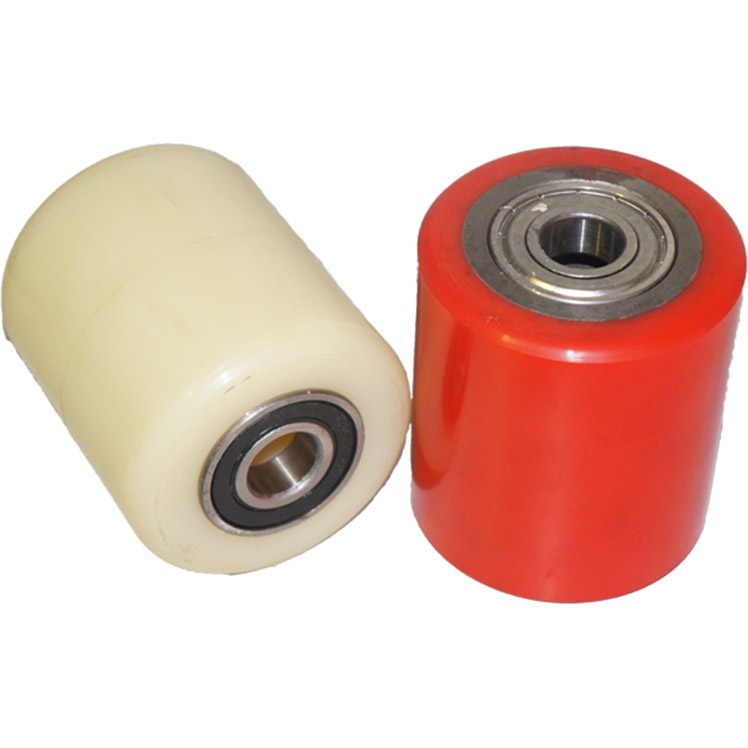

WHEELS: REAR PU 2500KG PALLET TRUCK (EA)
