| Description | Milling Vice |
|---|---|
| Model | N-151S |
| Jaw Width (mm) | 150 |
| Jaw Opening (mm) | 150 |
| Base | Swivel |
| Material | Cast Iron |
| Height (mm) | 100 |
| Weight (kg) | 16 |
| Volume (m³) | 0.01755 |
| WEIGHT NETT/GROSS | 35kgs |
| VOLUME | 0.0169cm |
Description
SKU : VM-9963264
Price per Unit
$565.00 (Exc GST)
$649.75 (Inc GST)
FEATURES:

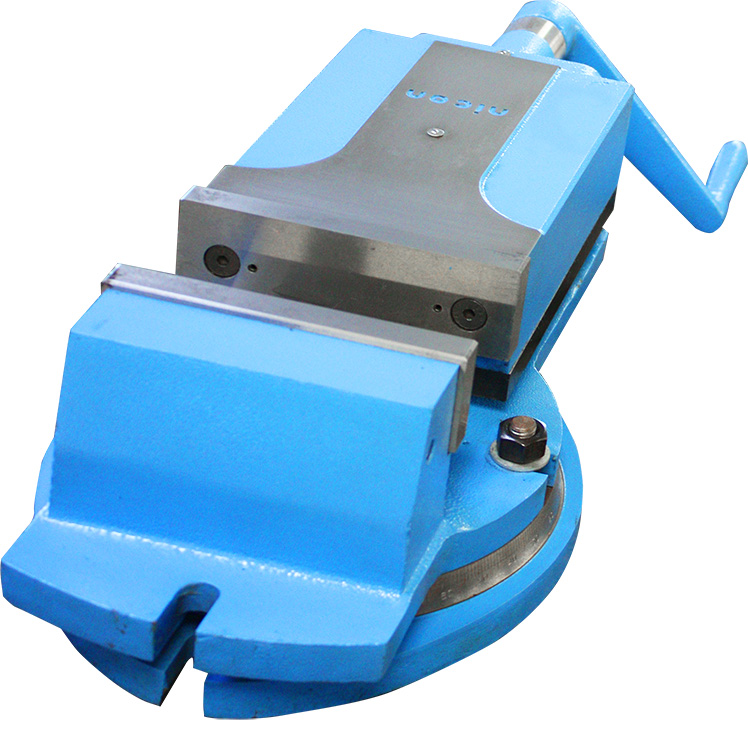

* The Nicon N151S-150 vice has a ductile steel body with hardened and ground movable steel jaw
* All surfaces are precision ground and the bed is hardened
* Spherical segment allows for all directional alignment
* Bearing thrust collar cuts friction and increases clamping pressure
* Mounted of fixed base
* Swivel base is graduated to 360 deg
* Jaws are hardened and precision ground with maintained accuracy and repeatability * Precision Lock Down milling vice
* Accuracy in squarness0.02/100mmy while machining
* Vice can be quickly aligned through longitudinal provided in the base of the body
| Weight | 16 kg |
|---|---|
| Dimensions | 0.43 × 0.28 × 0.14 cm |
