| Description | Milling Vice |
|---|---|
| Model | N-181 |
| Type | Hydraulic |
| Jaw Width (mm) | 150 |
| Jaw Opening (mm) | 300 |
| Base | Fixed |
| Material | Cast Iron |
| Height (mm) | 160 |
| NETT/GROSS | 45.0kg |
| VOLUME | 0.2910cm |
Description
SKU : VM-9963282
Price per Unit
$974.00 (Exc GST)
$1,120.10 (Inc GST)
FEATURES:

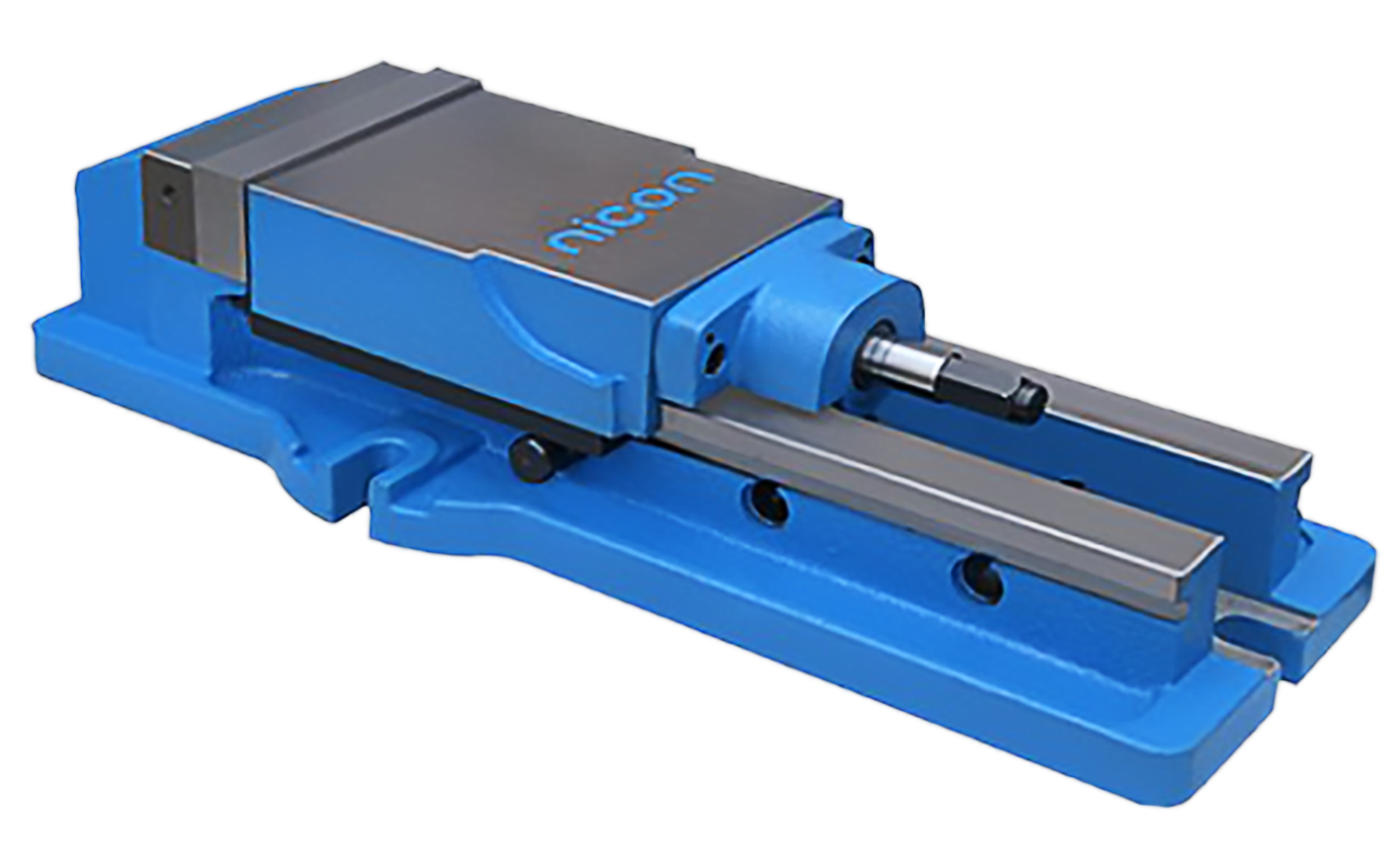

* Features of the N-181 Milling Vice.
* Ruggedly constructed for milling, drilling, shaping, grinding and many other machine shop applications.
* Body made of high-quality ductile cast iron to resist deflection or bending.
* Hardened and ground sideways.
* Concealed spindle for protection against chip and dirt.
* Hydraulic booster system for maximum clamping pressure with minimum force.
* Hydra-booster system is guaranteed for 1 year limited.
* Also available in swivel base.
* Accuracy in squareness is 0.02/100mm.
* Quick of clamping, locking and ease of operation.
* The hydraulic oil number is #68
* Maximum clamping Pressure 4500Kg.
| Weight | 40 kg |
|---|---|
| Dimensions | 0.4 × 0.28 × 0.26 cm |
Specifications
