| Table Size (mm) | 1246 x 230 |
|---|---|
| Travel X-axis (mm) | 745 |
| Travel Y-axis (mm) | 305 |
| Travel Z-axis (mm) | 405 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 86 |
| Spindle Taper | R8 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 3750 |
| Max Nose to Table (mm) | 463 |
| Max Nose to Column (mm) | 533 |
| Table Slot (mm) | 16 |
| Motor (kW) | 2.25 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1,380 / 1,465 |
| Volume | 7.200cm |
| Packing Size L x W x H (mm) | 1,600 x 1,800 x 2,500 |
Description
SKU : MM-228000
Price per Unit
$16,900.00 (Exc GST)
$19,435.00 (Inc GST)
FEATURES:
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
| Weight | 1465 kg |
|---|---|
| Dimensions | 16 × 1.8 × 2.5 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

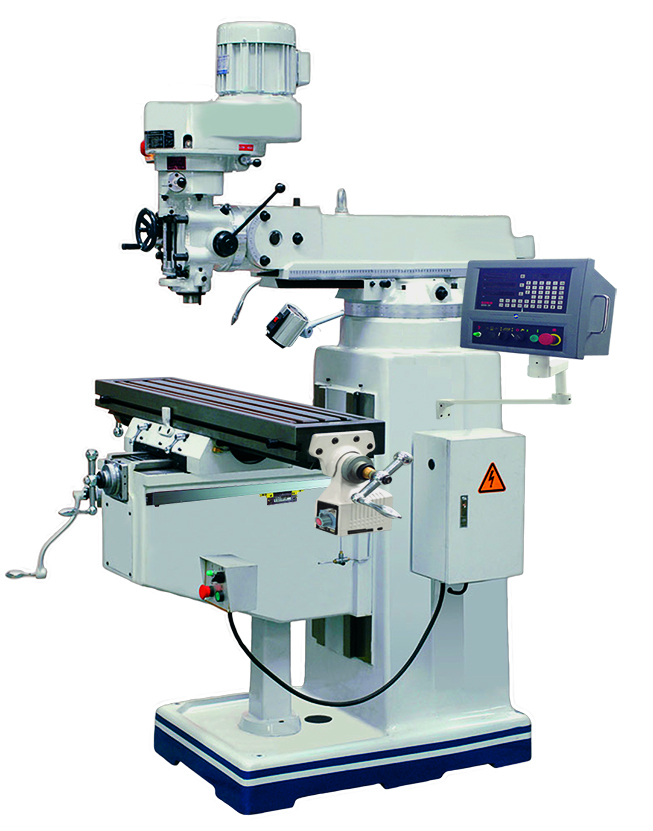

MILLING MACHINE: X6325D /TM240 NT40 Single Phase
SKU:
MM-228510
* The TM-240 (X6323B) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM270 BALL SCREWS
SKU:
MM-228616
* The TM-270 (X6325A) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand

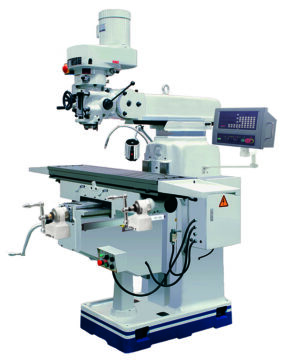

MILLING MACHINE: TM330 (M6333) NT40
SKU:
MM-228620
* The TM-330 (M6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* 3 axis digital readout & X/Y axes powerfeed.
* Powered rise & fall of the milling table.
* Automted lubrication system.
* NT40 spindle taper for heavy milling operations.
* Power drawbar fitted.

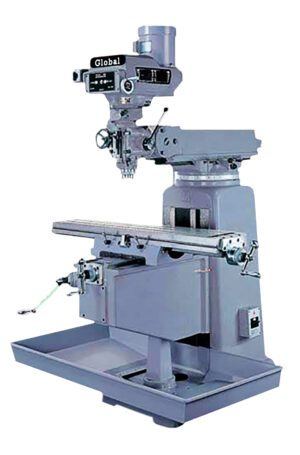

MILLING MACHINE: 3H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244124

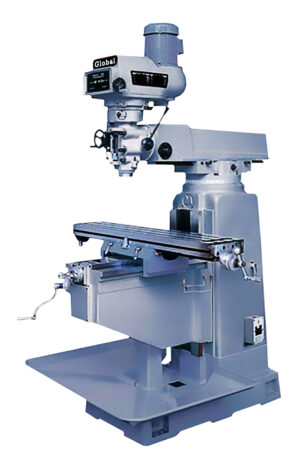

MILLING MACHINE: 4H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244128
MILLING MACHINE: 5H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244132
* The 5H model comes with standard 1270mm table, with an option of 1372mm.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axie rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.

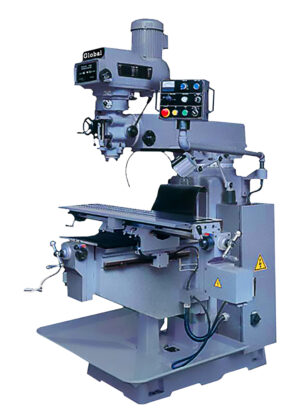

MILLING MACHINE: 6H 1372 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244136
* The 6H model comes with standard 1372mm table length.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axis rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.

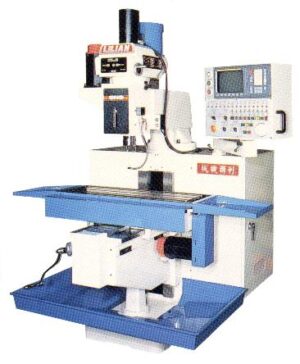

TURRET MILL: CNC BMT-2500V-NC
