CARBON BRUSHES Milwaukee 2004MOD PAIR
Excl. GST: $135.00
Incl. GST: $155.25
Incl. GST: $155.25
MILLING MACHINE: 2500UM UNIVERSAL TAIWAN
Excl. GST: $66,000.00
Incl. GST: $75,900.00
Incl. GST: $75,900.00
MILLING MACHINE: PBM-GVS300A PHOEBUS TAIWAN
Excl. GST: $45,000.00
Incl. GST: $51,750.00
* This is a very heavy universal type milling machine with large 1470 x 300mm table.
* Both horizontal and vertical spindle tapers are NT40.
* Vertical head is variable speed while the horizontal spindle has 9 steps.
* Power feed on X, Y and Z direction with rapids.
* Comes with pendant control.
* Equipped with electric box.
* Made in Taiwan.
| Weight | 2600 kg |
|---|---|
| Dimensions | 1.6 × 1.6 × 2.3 cm |
Description
| Table Size (mm) | 1270 x 300 |
|---|---|
| Travel X-axis (mm) | 920 |
| Travel Y-axis (mm) | 380 |
| Travel Z-axis (mm) | 450 |
| Quill Stroke (mm) | 140 |
| Quill Diameter (mm) | 105 |
| Vertical Spindle Taper | NT40 |
| Horizontal Spindle Taper | NT40 |
| Vertical Speeds (no.) | Variable |
| Vertical Speed Range (rpm) | 90 – 3800 |
| Horizontal Speeds (rno.) | 9 |
| Horizontal Speed Range (rpm) | 95 – 545 |
| Max Nose to Column (mm) | 690 |
| Motor (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2450 / 2600 |
| Volume | 5.888cm |
| Packing Dimensions L x W x H |
Shipping & Delivery
Related products
MILLING MACHINE: GLOBAL WM20 1PH
SKU:
MM-228100
MILLING MACHINE: M6325A/ TM240 TURRET R8 TAPER
SKU:
MM-228514
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: X6325D 5HP 3PH TURRET NT40 TAPER
SKU:
MM-228610
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.

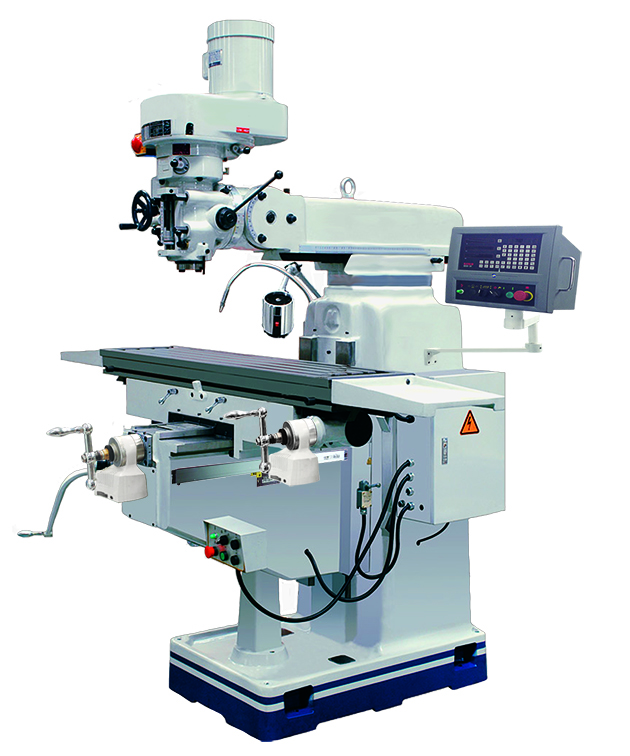

MILLING MACHINE: TM330 TURRET (M6333) NT40
SKU:
MM-228620
* The TM-330 (M6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* 3 axis digital readout & X/Y axes powerfeed.
* Powered rise & fall of the milling table.
* Automted lubrication system.
* NT40 spindle taper for heavy milling operations.
* Power drawbar fitted.
MILLING MACHINE: TM330 (X6333) TURRET NT40 BALL (SCREWS)
SKU:
MM-228625
* The TM330 (X6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: 4H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244128
MILLING MACHINE: V2 1224 X 228MM TABLE NT40 1PH TURRET
SKU:
MM-244300
* This 2V model is the smallest of the Turret milling machines made in China
* Fitted with Tawann milling head which icorperates P5 spindle bearings
Comes with E-GEO lead screws for utmost accuracy
* Fitted with 2 axis DRO
* Comes as a manual machine but you can add power feeds etc onto it
* Y-Z axes rubber way covers.
* Auto lubrication system.
* Electrical cabinet
* Shindle taper is NT40
Overhead pentant control panel for convenient
MILLING MACHINE: ZX7550V 3PH V/SPEED HORZ/VERTICLE
SKU:
MM-280826
* The ZX7550V is a turret style horizontal & verticle milling machine.
* Head is fully tiliting, swivelling & rotating
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 100-2000rpm
* One shot lubrication
Digital 3 axis readout is Sino brand
* Lonitudianal power feed
