| Table Size (mm) | 1270 x 254 |
|---|---|
| Travel X-axis (mm) | 914 |
| Travel Y-axis (mm) | 445 |
| Travel Z-axis (mm) | 445 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 85 |
| Spindle Taper | NT30 |
| Speeds (no.) | 3 steps |
| Speed Range (rpm) | 0 – 4200 |
| Motor (kW) | 2.25 |
| Weight (kg) | 1250 |
| Volume | 6.0647cm |
| Packing Size L x W x H (mm) | 1720 x 1640 x 2150 |
Description
SKU : MM-244124
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

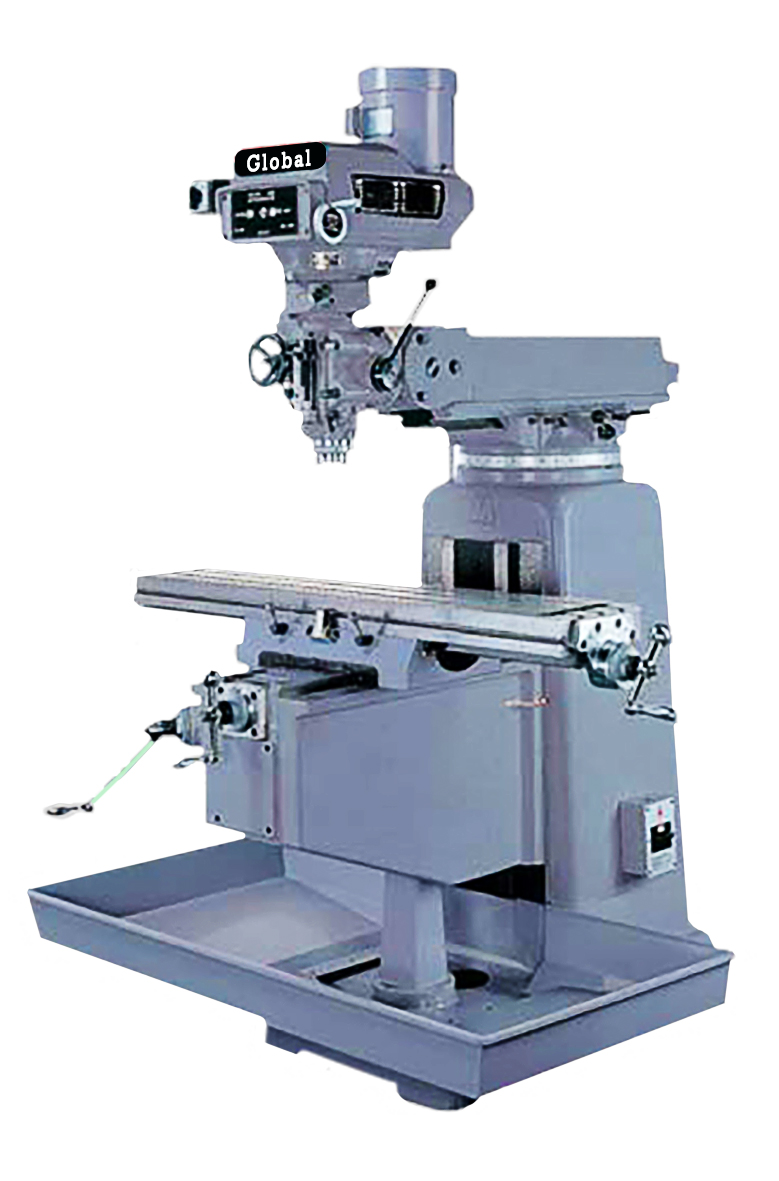

* This 3H model is one of the smallest of the turret milling machines.
* Comes as a manual machine but you can add power feeds etc onto it.
* Y-Z axes rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
| Weight | 1250 kg |
|---|---|
| Dimensions | 1.72 × 1.64 × 2.15 cm |
Specifications
