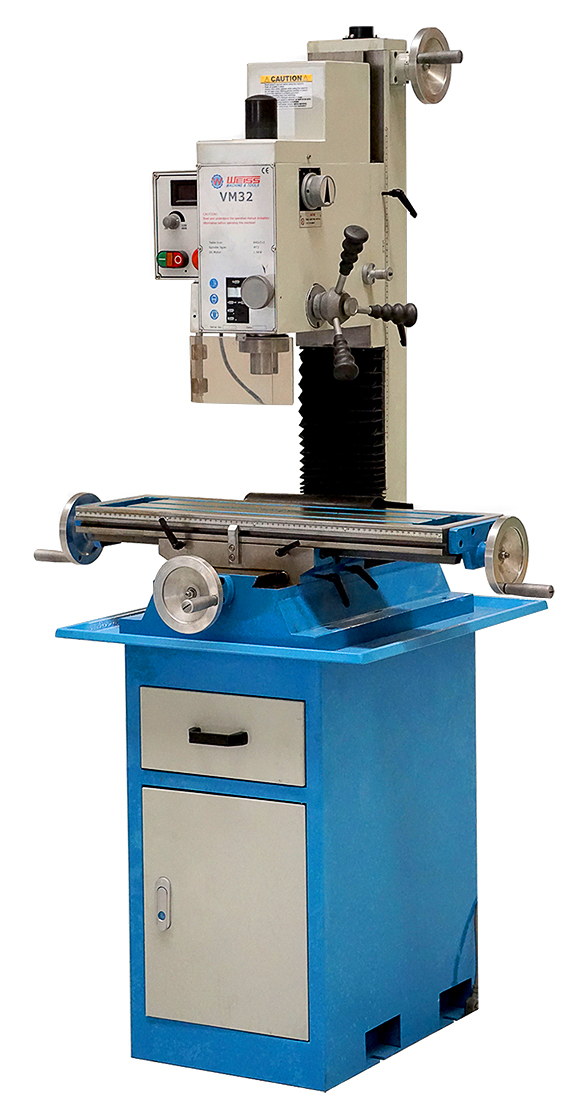

| DESCRIPTION | Drilling/Milling Machine |
|---|---|
| MODEL | VM32L |
| MAX DRILLING CAPACITY | 30.0mm |
| MAX MILLING CAPACITY | 20.0mm |
| MAX FACING CAPACITY | 76.0mm |
| TABLE SIZE | 840 x 210mm |
| CROSS TRAVEL | MT3 |
| LONGITUDIONAL TRAVEL | 70.0mm |
| SPINDLE TAPER | MT3 |
| SPINDLE TRAVEL | 70.0mm |
| T-SLOTS | 3 X 14.0mm |
| SPINDLE SPEEDS | Variable |
| SPEED RANGE | 50-2250rpm |
| DISTANCE SPINDLE TO COLUMN | 190mm |
| DISTANCE NOSE TO TABLE | 470mm |
| HEAD TILT | ±90Deg |
| MOTOR | Brushless 1500w 230v 1 Phase |
| WEIGHT NETT/GROSS | 302kg |
| VOLUME | 0.8473 |
Description
SKU : MD-330426
Price per Unit
$5,500.00 (Exc GST)
$6,325.00 (Inc GST)
FEATURES:
* The WMD32L is a compact milling & drilling machine with a variable speed control offering speeds from 50 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Brushless verable speed motor
| Weight | 302 kg |
|---|---|
| Dimensions | 0.85 × 0.89 × 1.12 cm |
