MILL DRILL: WMD-30L 1.5kW WEISS
$3,100.00
MILL DRILL: WMD-32B 1.5HP 1PH WEISS
$2,690.00

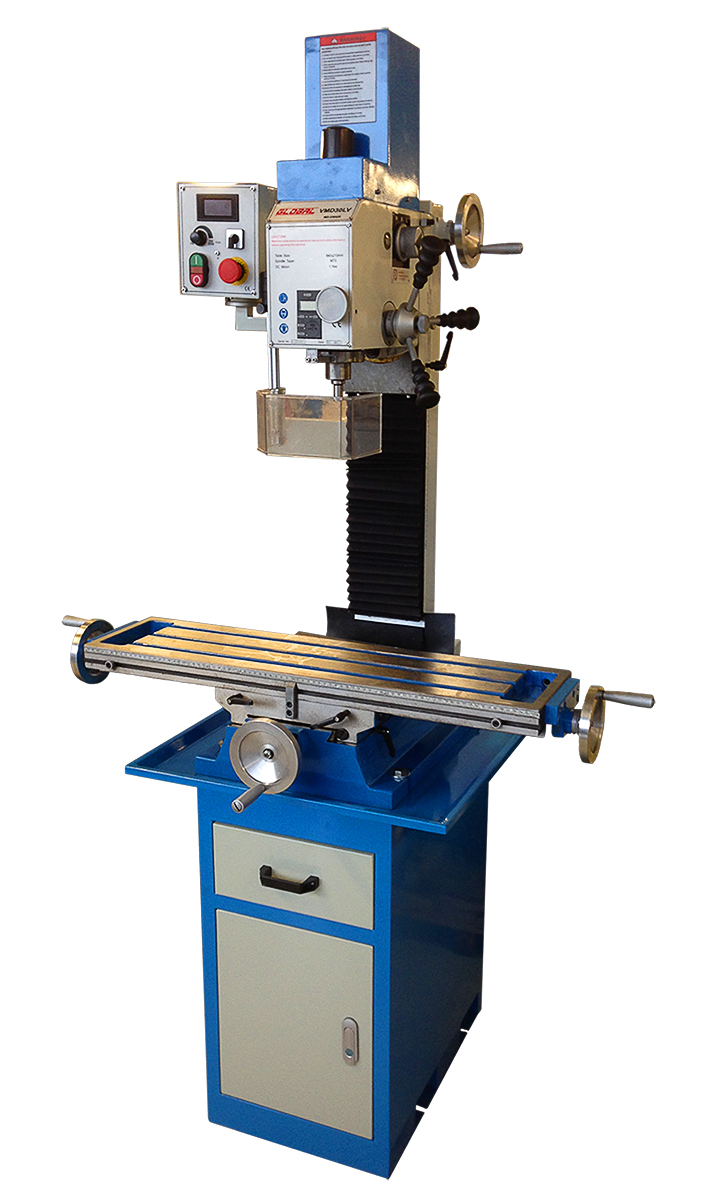

MILL DRILL: WMD-30V 1.5HP 1PH WEISS
$3,100.00
* The WMD30V is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
| Weight | 260 kg |
|---|---|
| Dimensions | 0.71 × 0.89 × 1.12 cm |
Description
| Table Size (mm) | 700 x 210 |
|---|---|
| Drilling Capacity (mm) | 32 |
| Travel X-axis (mm) | 440 |
| Travel Y-axis (mm) | 200 |
| Swing (mm) | 380 |
| Max Nose to Table (mm) | 470 |
| Spindle Taper | MT3 |
| Quill Stroke (mm) | 70 |
| Quill Diameter (mm) | 70 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 2250 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 202 / 254 |
| Volume (m³) | 0.7077 |
| Packing Size L x W x H (mm) | 1070 x 700 x 1170 |
| STAND WEIGHT | 30 / 32kg |
| Stand Weight (kg) | 32 |
| Stand Volume (m³) | 0.1265 |
Shipping & Delivery
Related products
MILL/DRILL: TPC-32 1.5HP 1PH WEISS
SKU:
MD-330260
MILL/DRILL: TPC-7045A PF & DRO W/STAND WEISS
SKU:
MD-330284
* Heavy cast square section column with dovetail slideway.
* Covers on both vertical & horizontal slideways.
* Heads can be tilted ±90°.
* Equipped with X and Y power feed units.
* Fitted with 2 axis digital readouts.
* Power rise & fall on the column.
* Fine down feed adjustment.
* Forward & reverse magnetic safety switch.
* Recycling coolant system with filters.
* Adjustable table travel stops.
* Adjustable depth gauge.
* Mounted on a heavy duty stand.
MILL/DRILL: WBM45-45 1.5KW 1PH BRUSHLESS MOTOR
SKU:
MD-330294
* Precision mill, quiet & smooth running, yet solid & stable.
* New brushless type motor offers consistant torque at all speeds.
* Heavy cast square section column with dovetail slideway.
* Covers on both vertical & horizontal slideways.
* Head can be tilted ±90°.
* Fine down feed adjustment.
* Forward & reverse magnetic safety switch.
* Recycling coolant system with filters.
* Adjustable table travel stops.
* Adjustable depth gauge.
* Mounted on a heavy duty stand.
MILL/DRILL: ZX-40APC COLUMN TYPE WEISS
SKU:
MD-330380
* The ZX-40APC is a robust column type mill driill.
* Head can be rotated 360° and can be tilted to 45°.
* Equipped with power downfeed on the quill and a MT4 spindle taper.
* The compound table makes this a very verisatile machine.
* Coolant system with reservoir built into the base of the machine.
MILL/DRILL: WM-25VL V/SPEED BRUSHLESS MTR P/FEED WEISS
SKU:
MD-330410
* The WMD25L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Fitted with table power feed
MILL DRILL: WMD-30LV 1.1KW WITH POWERFEED WEISS
SKU:
MD-330420
* The WMD30LV is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* Powerfeed fitted on the X axis.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WMD-32B 1.5HP 1PH WEISS
SKU:
MD-330424
* The WMD-32B is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WMD-32L 1.5kW 1PH V/SPD BRUSHLESS WEISS
SKU:
MD-330426
* The WMD32L is a compact milling & drilling machine with a variable speed control offering speeds from 50 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Brushless verable speed motor
