| Table Size (mm) | 840 x 210 |
|---|---|
| Drilling Capacity (mm) | 30 |
| Travel X-axis (mm) | 580 |
| Travel Y-axis (mm) | 200 |
| Swing (mm) | 380 |
| Max Nose to Table (mm) | 470 |
| Spindle Taper | MT3 |
| Quill Stroke (mm) | 70 |
| Quill Diameter (mm) | 70 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 2250 |
| Table Slot (mm) | 14 |
| Motor (kW) | 1.1 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 240 / 280 |
| Volume (m³) | 0.8473 |
| Packing Size L x W x H (mm) | 850 x 1,200 x 1,800 |
| Stand Weight (kg) | 32 |
| Stand Volume (m³) | 0.1488 |
Description
SKU : MD-330420
Price per Unit
$3,500.00 (Exc GST)
$4,025.00 (Inc GST)
FEATURES:

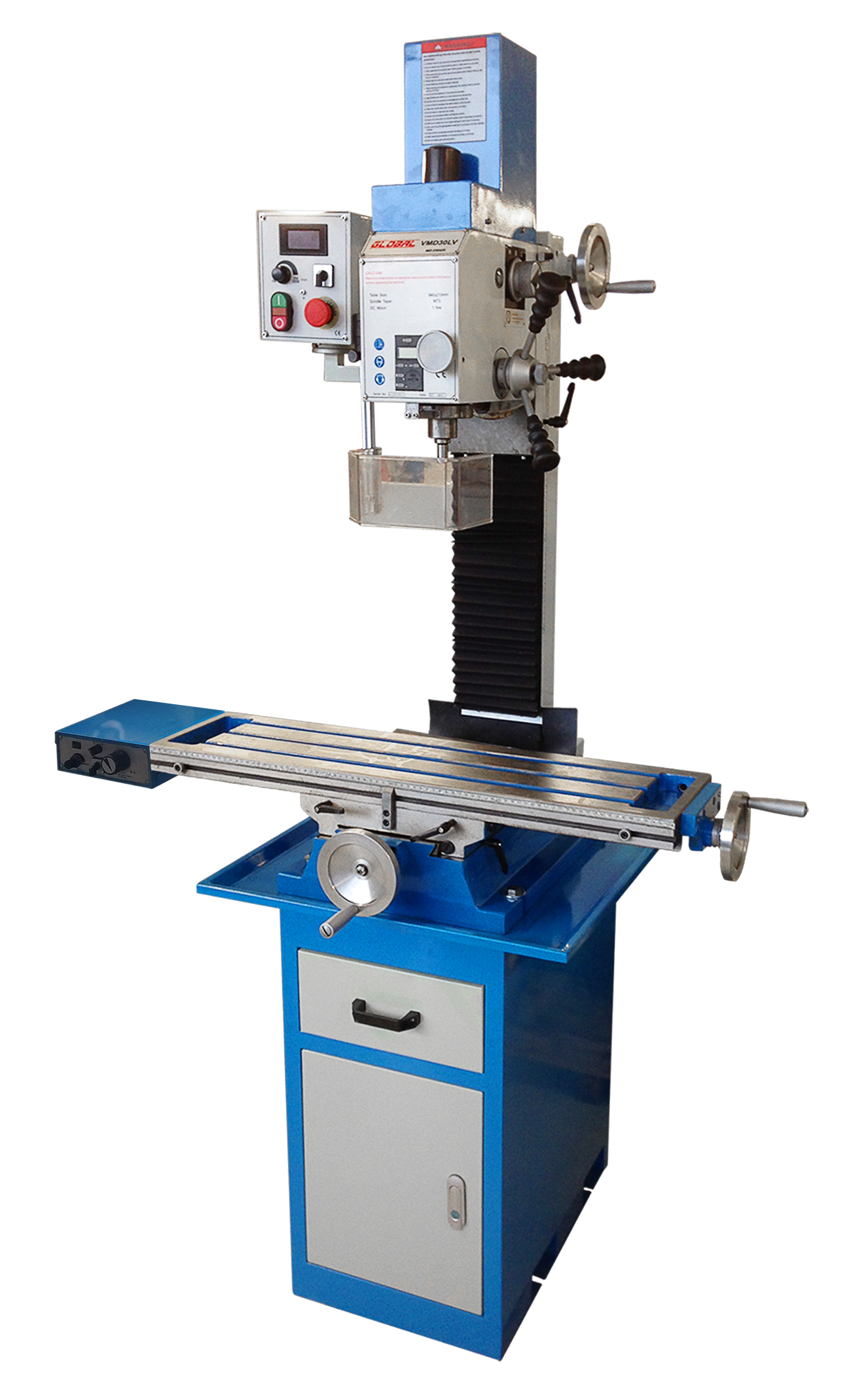

* The WMD30LV is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* Powerfeed fitted on the X axis.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
| Weight | 280 kg |
|---|---|
| Dimensions | 0.85 × 0.89 × 1.12 cm |
